Exploded View: Disassembly

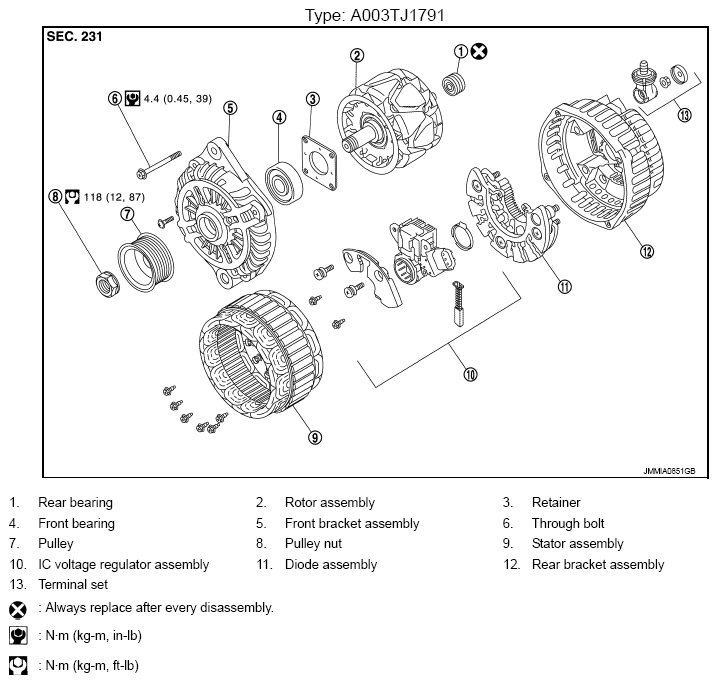

Fig 1: Disassembled View Of Alternator With Torque Specifications

G07053890

Courtesy of NISSAN MOTOR CO., U.S.A.
