Engine Control System - Introduction
>>
System Description
>>
System
>>
Electric Ignition System
>>
ELECTRIC IGNITION SYSTEM : System Description
>>

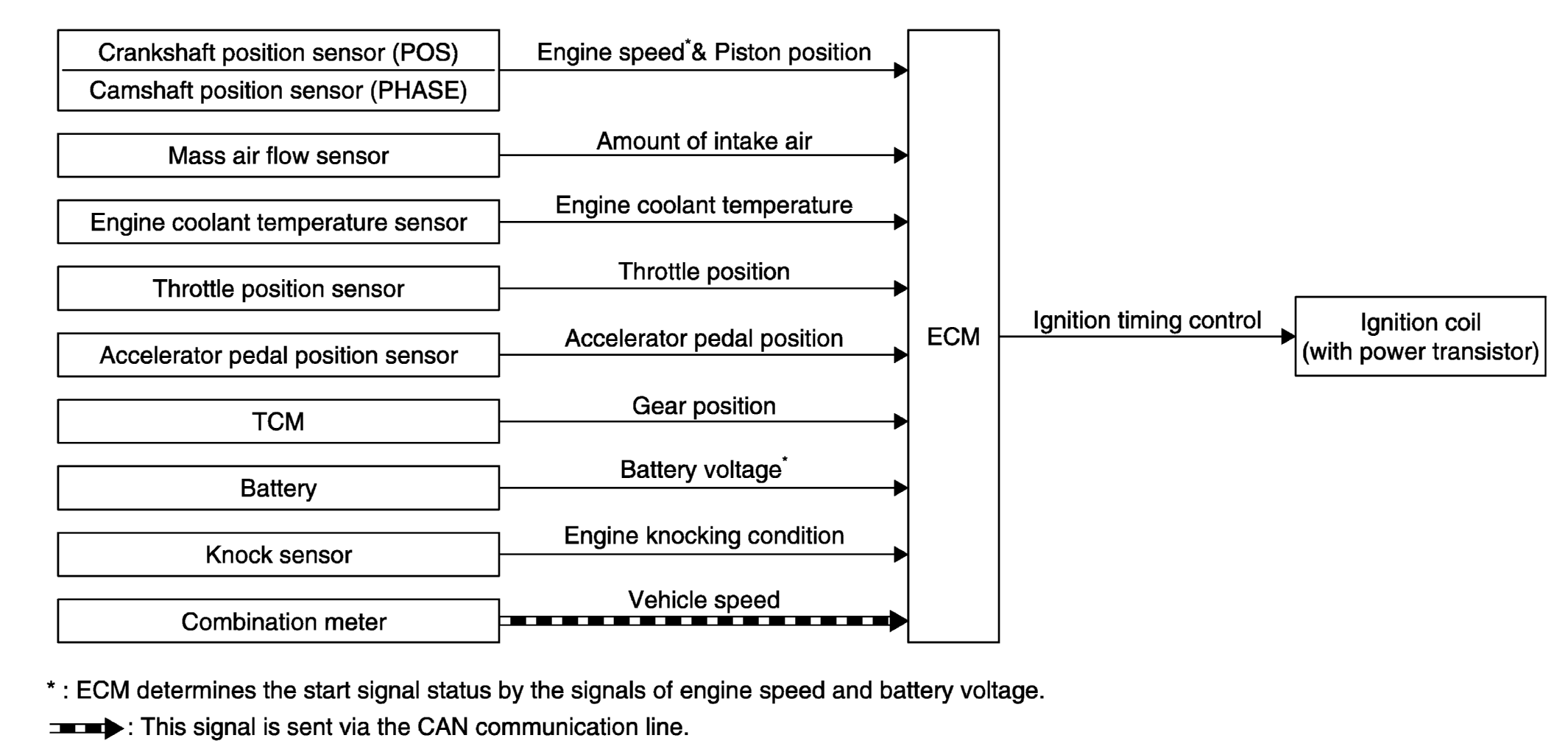

System Diagram
System Diagram
Fig 1: Electric Ignition System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
