Nissan-Datsun
>>
2011
>>
Quest SL
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Removal And Installation
>>
Oil Cooler
>>
Exploded View
Exploded View

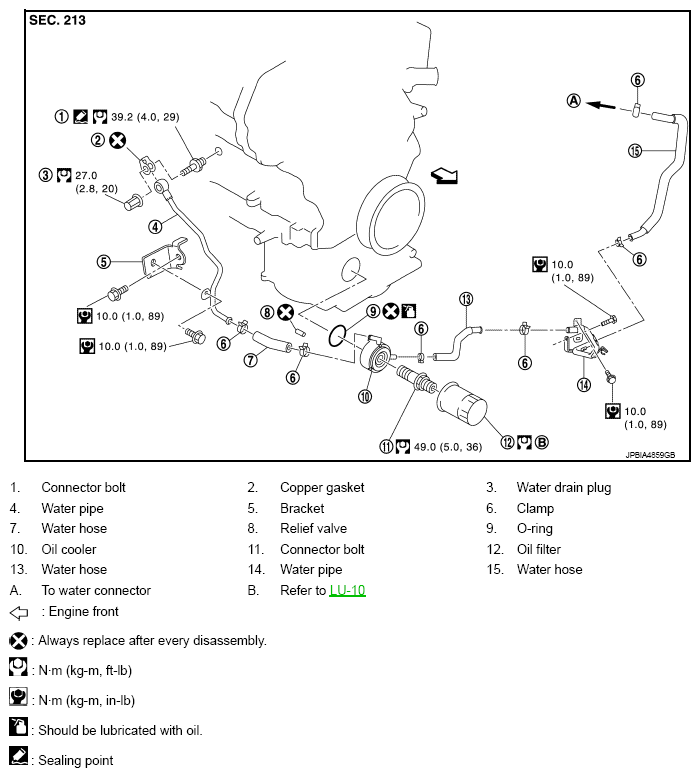

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
