Inspection and Adjustment: Notes

Inspection after removal

Check the front regulator for the following items. Replace or grease it if a malfunction is detected.

• Wire wear
• Front regulator deformation
• Apply 0.1 to 0.2 g of grease to the surface of carrier plate (1) and on the surface in contact with glass.

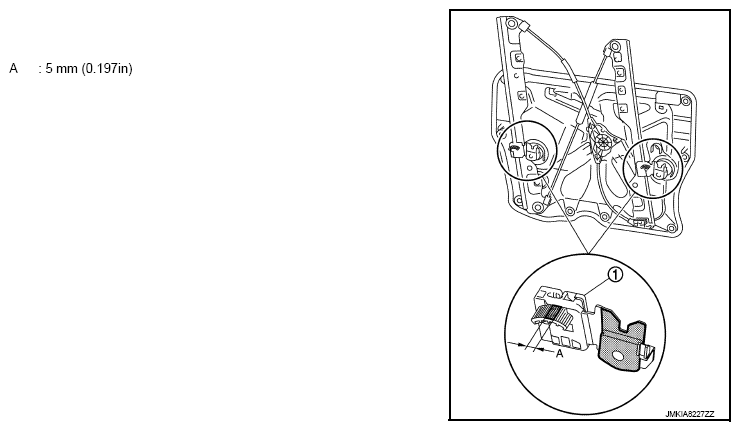

  Fig 1: Identifying Carrier Plate

  Courtesy of NISSAN MOTOR CO., U.S.A.
