STARTER MOTOR DRIVE CONTROL : System Diagram

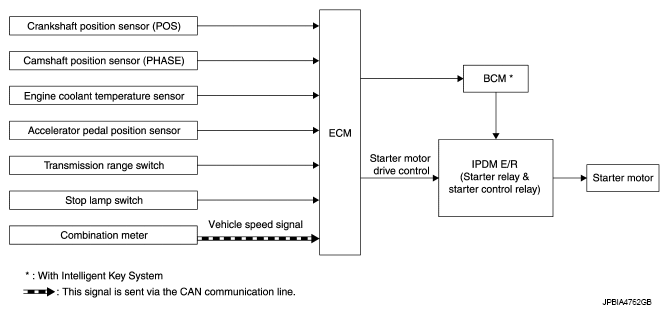

Fig 1: Starter Motor Drive Control System Diagram

G07051122

Courtesy of NISSAN MOTOR CO., U.S.A.
