Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (With VDC)
>>
Removal And Installation
>>
Yaw Rate/Side G Sensor
>>
Exploded View
Exploded View

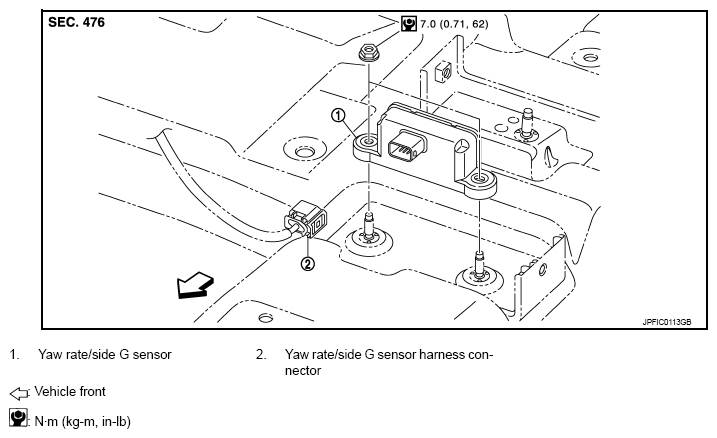

Fig 1: Yaw Rate/Side G Sensor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
