4WD : Exploded View
4WD : Exploded View

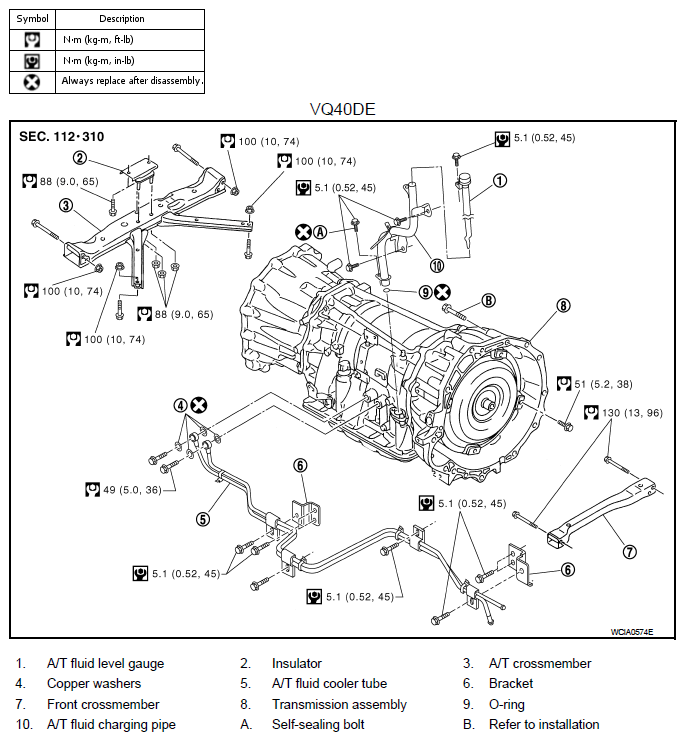

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications - VQ40DE (4WD)
Courtesy of NISSAN MOTOR CO., U.S.A.

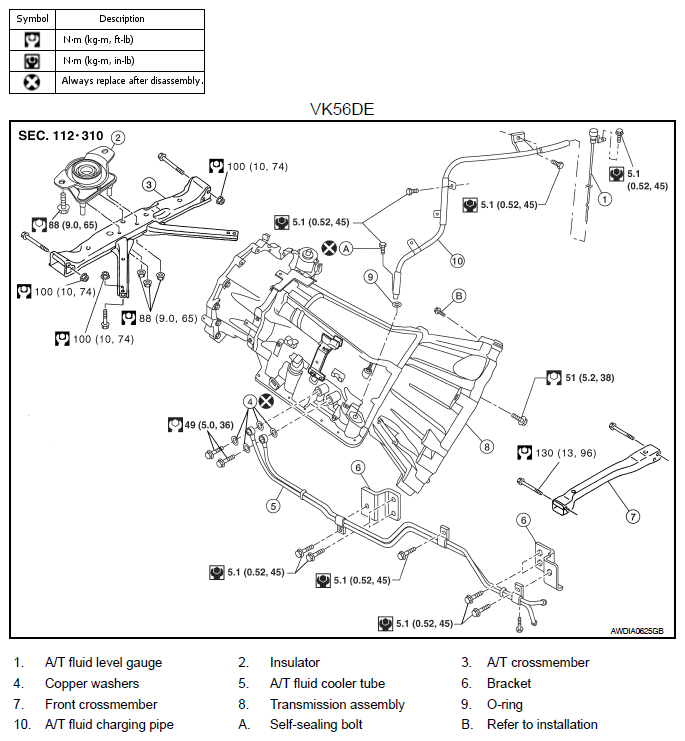

Fig 2: Exploded View Of Transmission Assembly With Torque Specifications - VK56DE (4WD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
