2WD : Exploded View
2WD : Exploded View

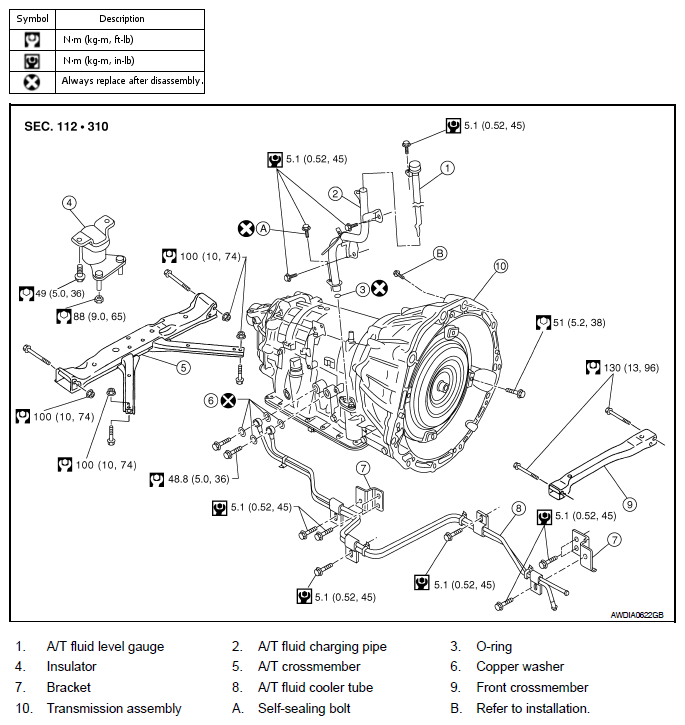

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications - 2WD
Courtesy of NISSAN MOTOR CO., U.S.A.
