VQ40DE Models

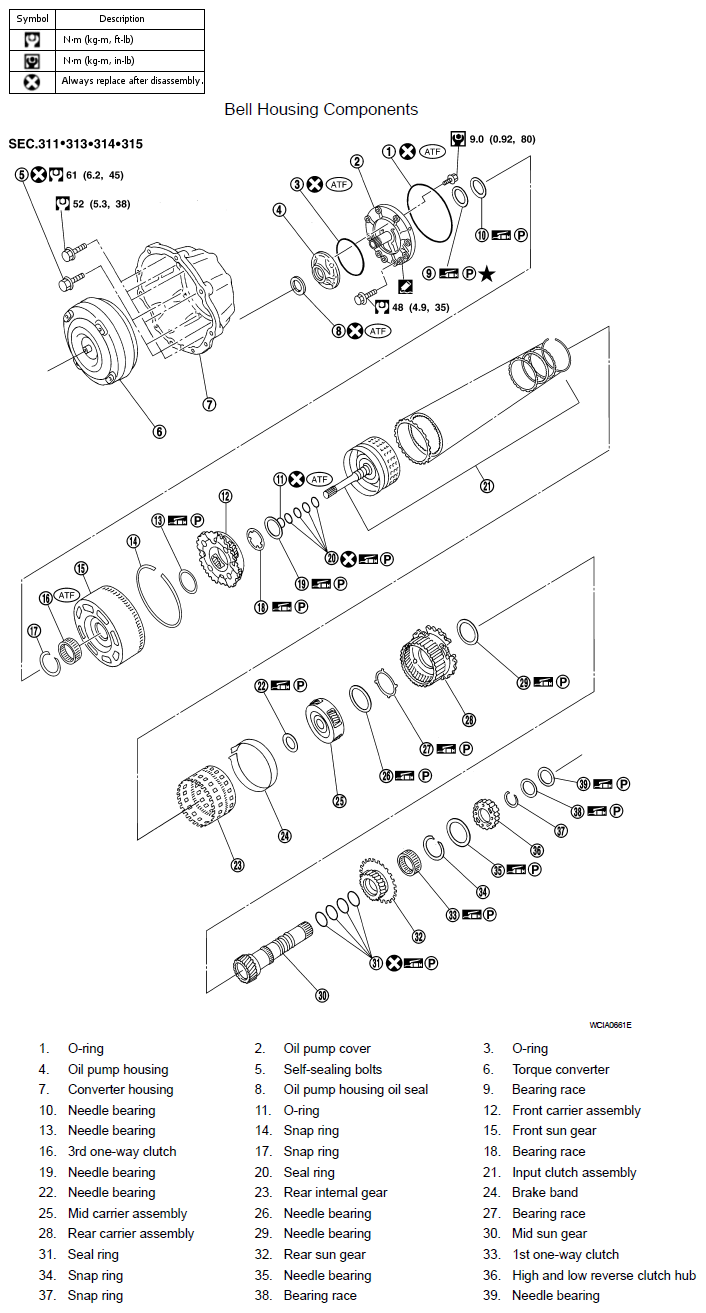

Fig 1: Exploded View Of Overhaul With Torque Specifications - VQ40DE Models (Bell Housing Components)

Courtesy of NISSAN MOTOR CO., U.S.A.

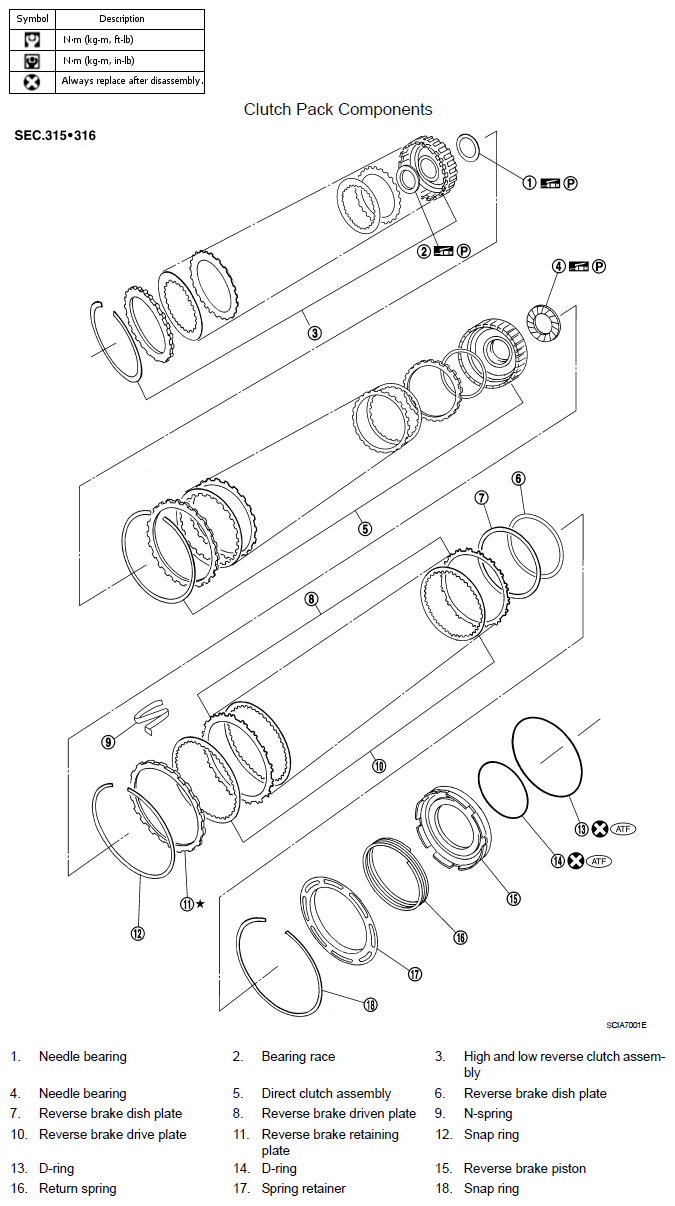

Fig 2: Exploded View Of Overhaul - VQ40DE Models (Clutch Pack Components)

Courtesy of NISSAN MOTOR CO., U.S.A.

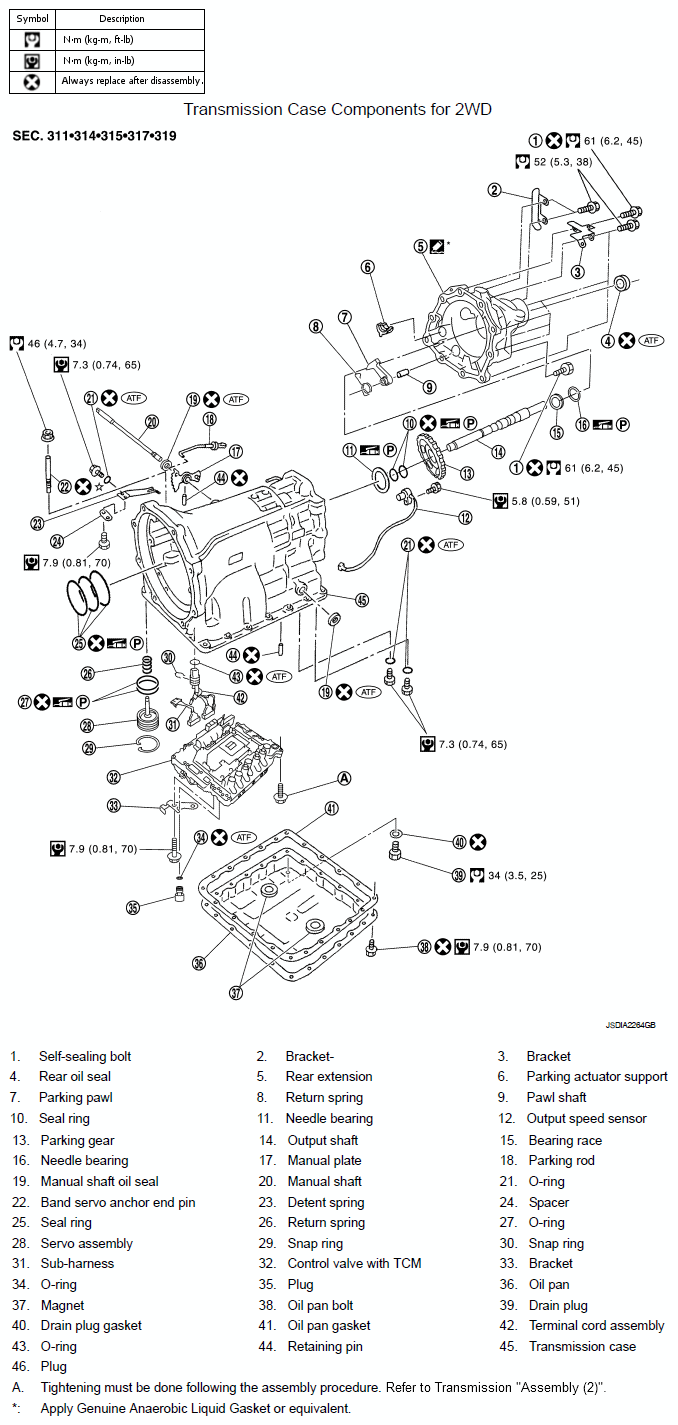

Fig 3: Exploded View Of Overhaul With Torque Specifications - VQ40DE Models (Transmission Case Components For 2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Tightening must be done following the assembly procedure. Refer to "ASSEMBLY (2) ".

*: Apply Genuine Anaerobic Liquid Gasket or equivalent.

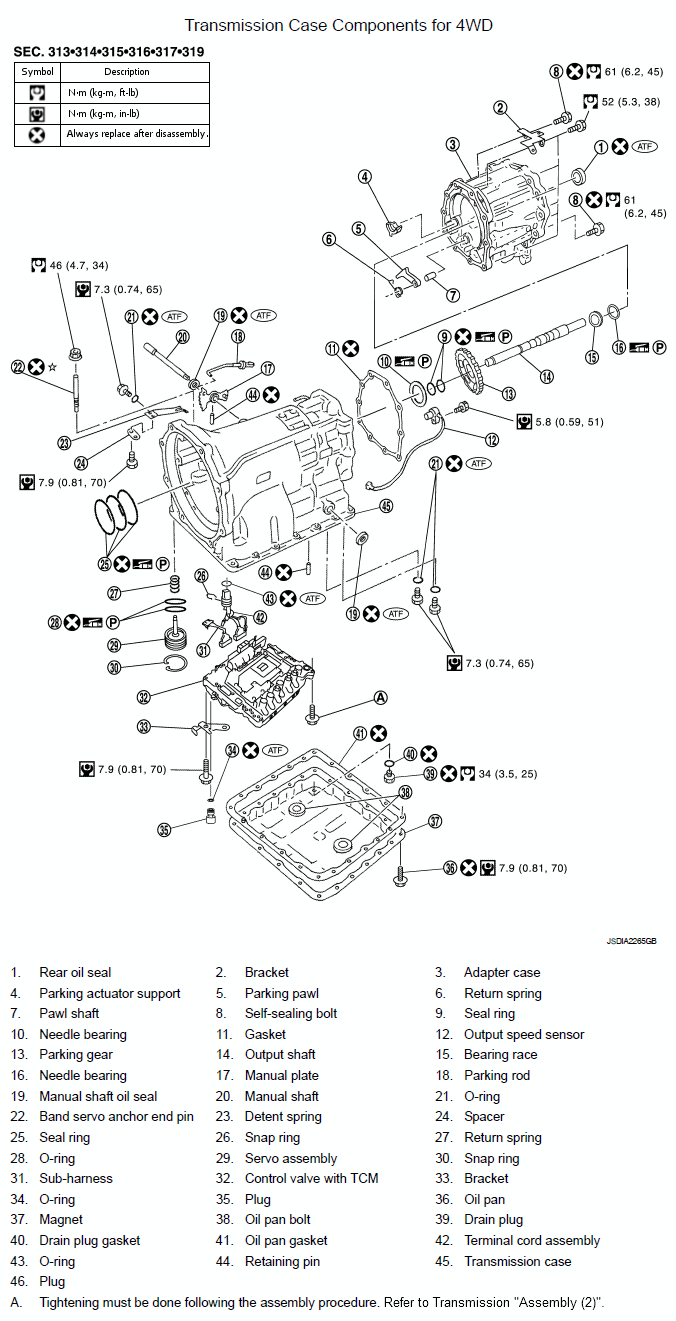

Fig 4: Exploded View Of Transmission With Torque Specifications - VQ40DE Models (Transmission Case Components For 4WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Tightening must be done following the assembly procedure. Refer to "ASSEMBLY (2) ".
