VK56DE Models

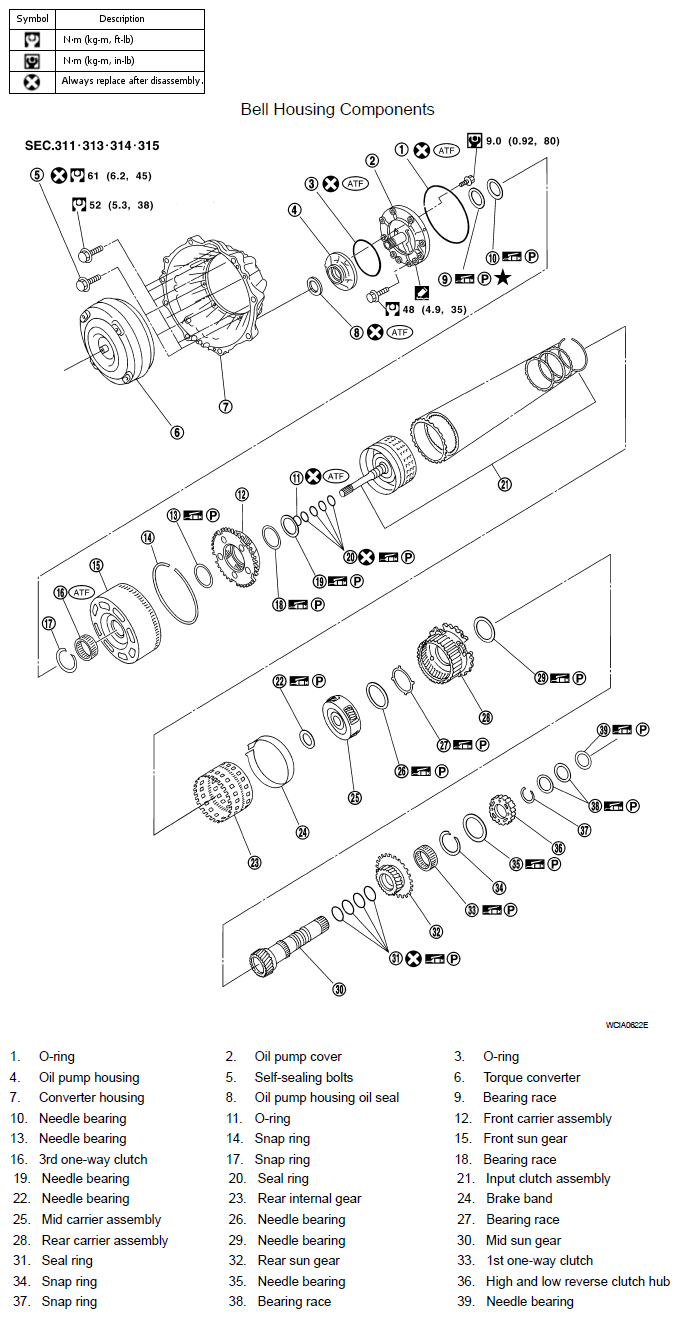

Fig 1: Exploded View Of Transmission With Torque Specifications - VK56DE Models (Bell Housing Components
G07147031Courtesy of NISSAN MOTOR CO., U.S.A.

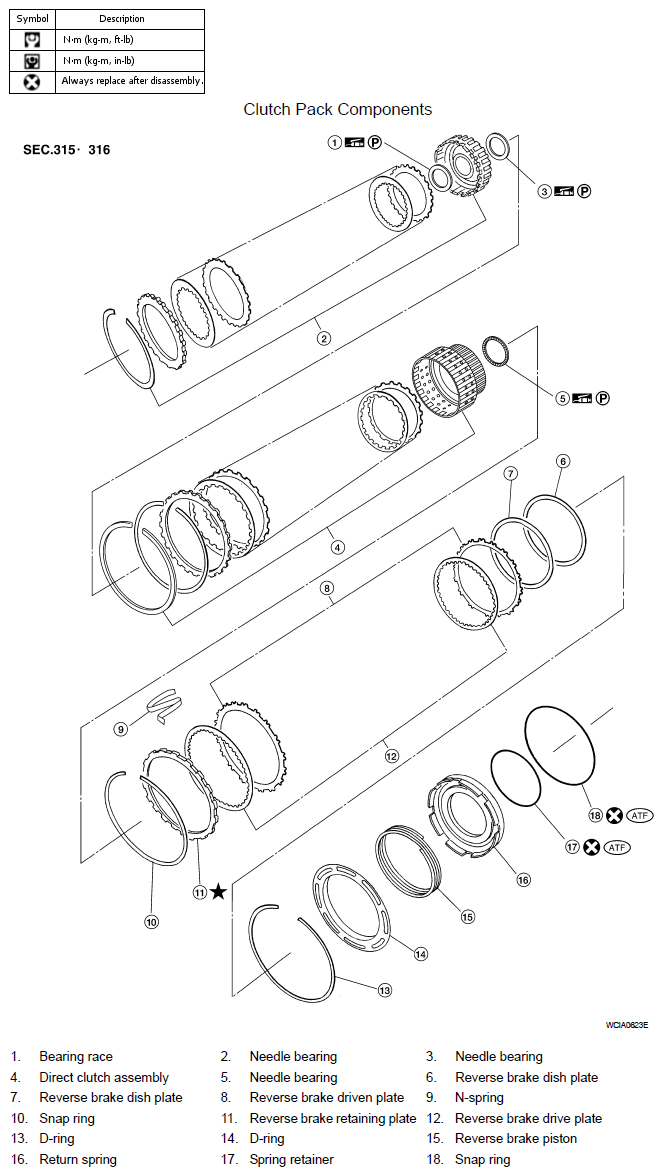

Fig 2: Exploded View Of Transmission - VK56DE Models (Clutch Pack Components)
G07147032Courtesy of NISSAN MOTOR CO., U.S.A.

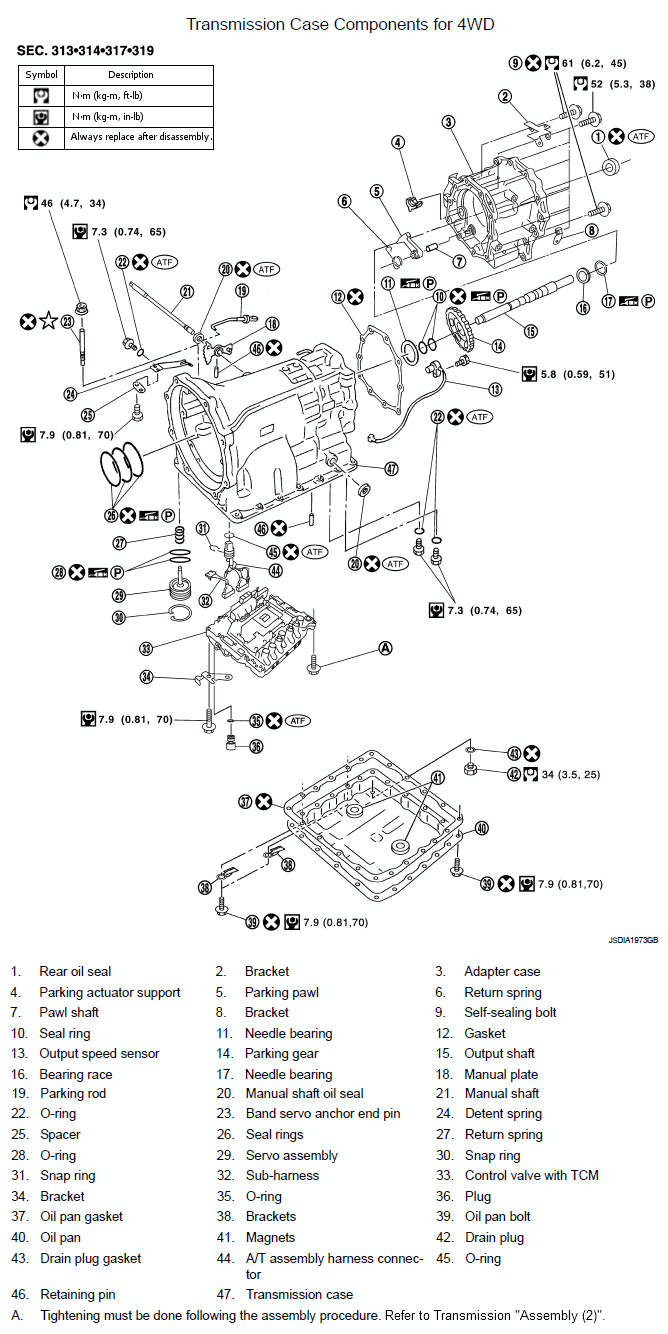

Fig 3: Exploded View Of Transmission With Torque Specifications - VK56DE Models (Transmission Case Components For 4WD)
G07147033Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Tightening must be done following the assembly procedure. Refer to "ASSEMBLY (2) ".
