VK56DE Models

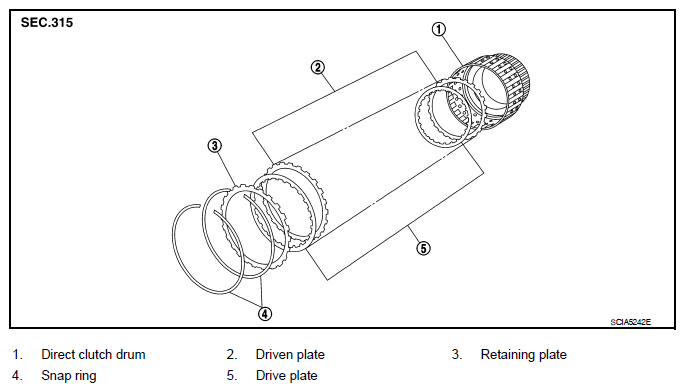

Fig 1: Exploded View Of Direct Clutch (VK56DE Models)

G07147176

Courtesy of NISSAN MOTOR CO., U.S.A.
