Pathfinder SV, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
System Description
>>
A/T Control System
>>
TCM Function
>>
Control System Diagram (Without Manual Mode)
Control System Diagram (Without Manual Mode)

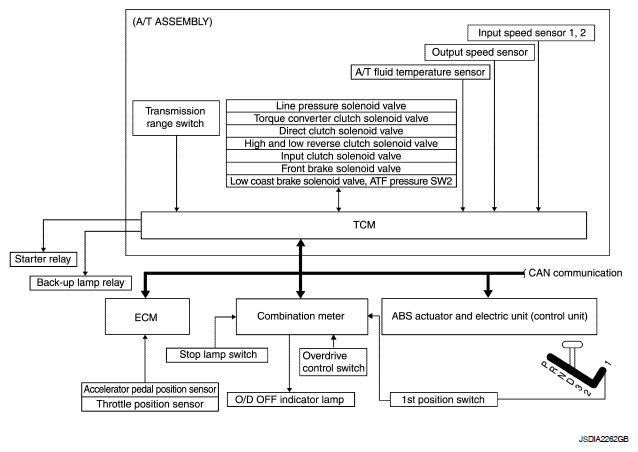

Fig 1: Control System Diagram (Without Manual Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.
