CLUTCH AND BAND CHART (With Manual Mode)

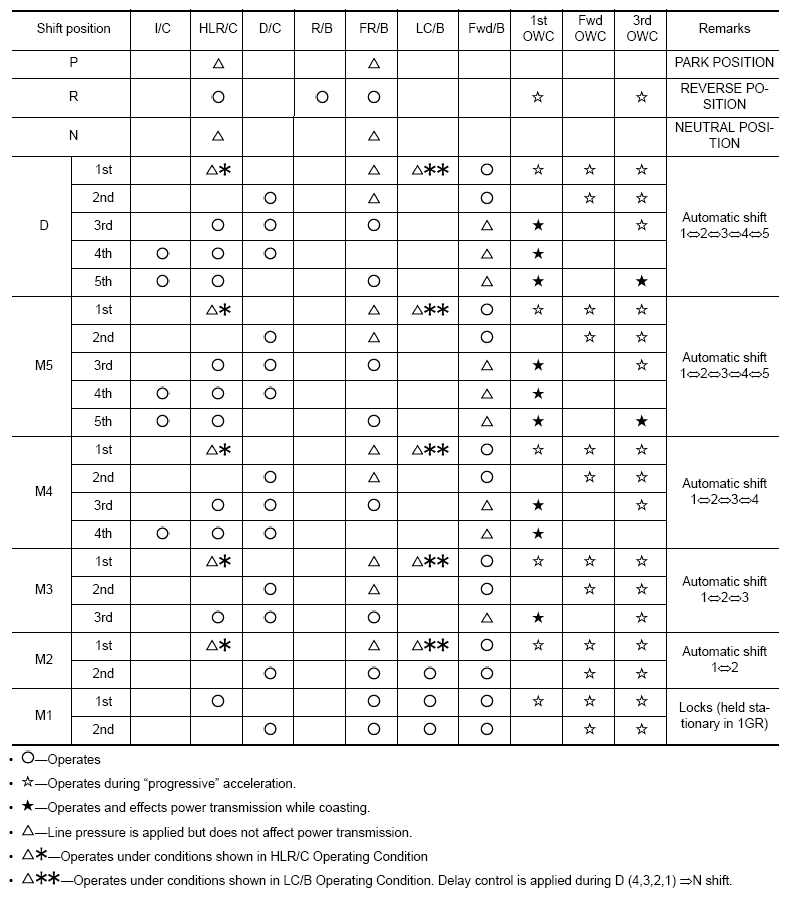

Fig 1: Clutch And Band Chart (With Manual Mode)
G07146854Courtesy of NISSAN MOTOR CO., U.S.A.

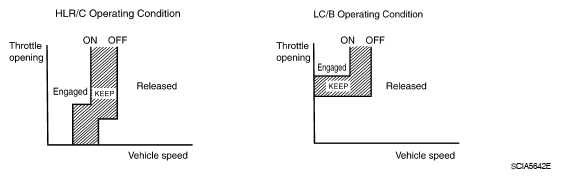

Fig 2: HLR/C And LC/B Operating Condition Graph
G07146855Courtesy of NISSAN MOTOR CO., U.S.A.
