Pathfinder SV, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
System Description
>>
A/T Control System
>>
Cross-Sectional View
Cross-Sectional View

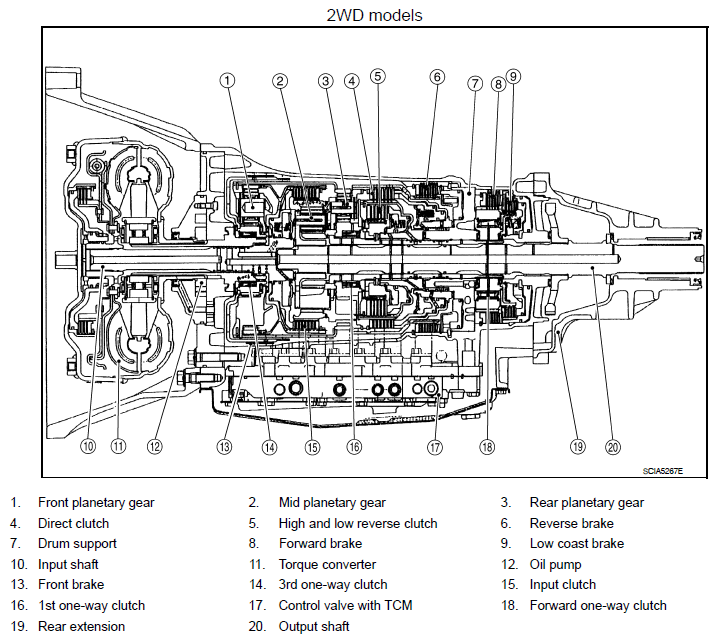

Fig 1: Cross-Section View Of A/T Control System - 2WD Models
Courtesy of NISSAN MOTOR CO., U.S.A.

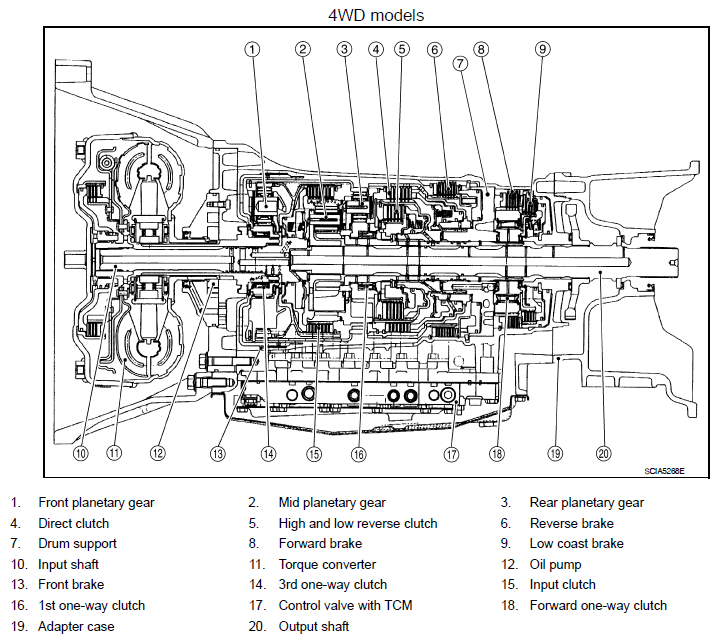

Fig 2: Cross-Section View Of A/T Control System - 4WD Models
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
