Nissan-Datsun
>>
2011
>>
Pathfinder SV, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Removal And Installation
>>
Shift Control System
>>
Exploded view
Exploded view

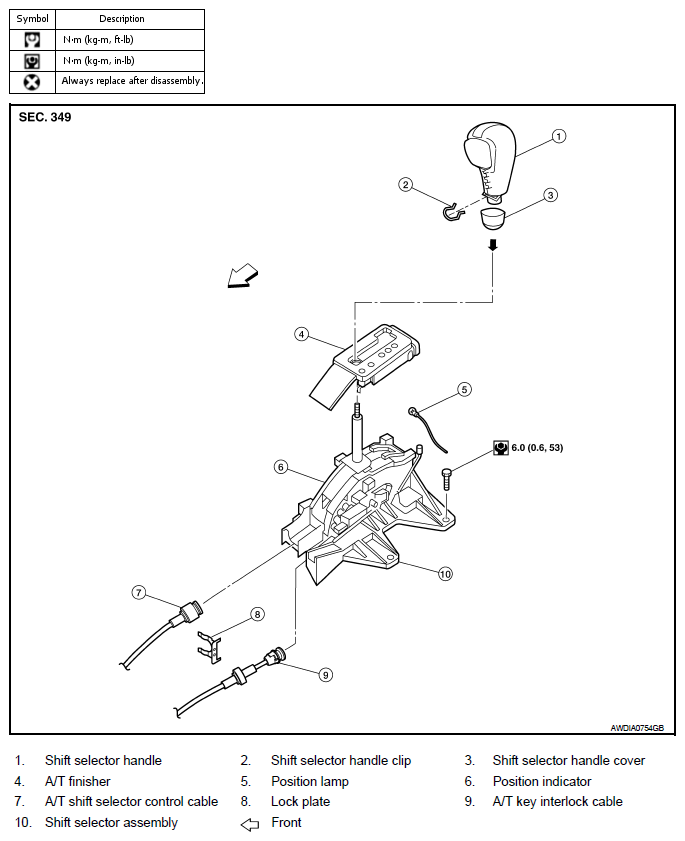

Fig 1: Exploded View Of Shift Control System With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
