Disassembly and Assembly: Notes

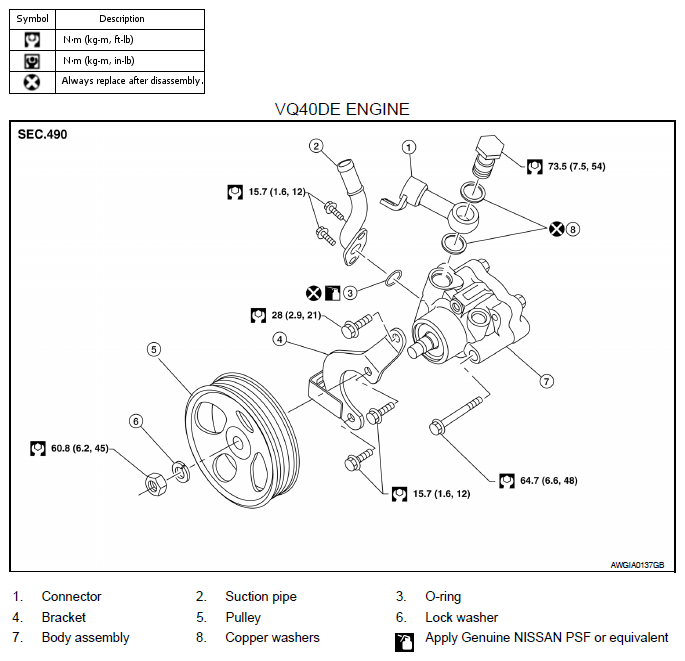

Fig 1: Power Steering Oil Pump Replacement Components - VQ40DE Engine - With Torque Specifications
G07148647Courtesy of NISSAN MOTOR CO., U.S.A.

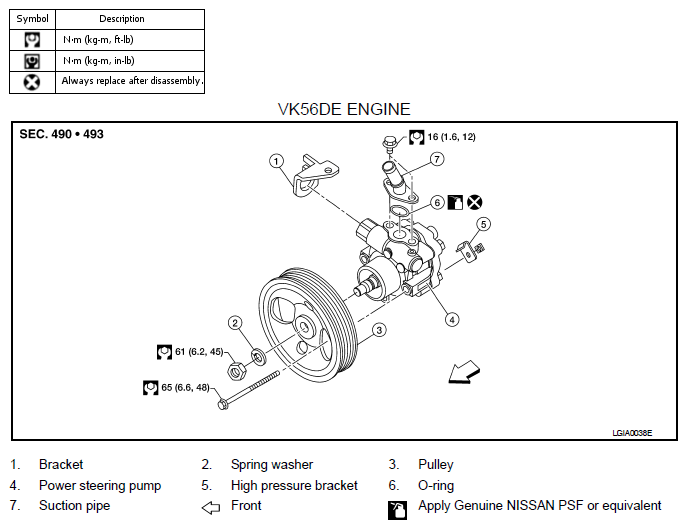

Fig 2: Power Steering Oil Pump Replacement Components - VK56DE Engine - With Torque Specifications
G07148648Courtesy of NISSAN MOTOR CO., U.S.A.
