Function and System Application

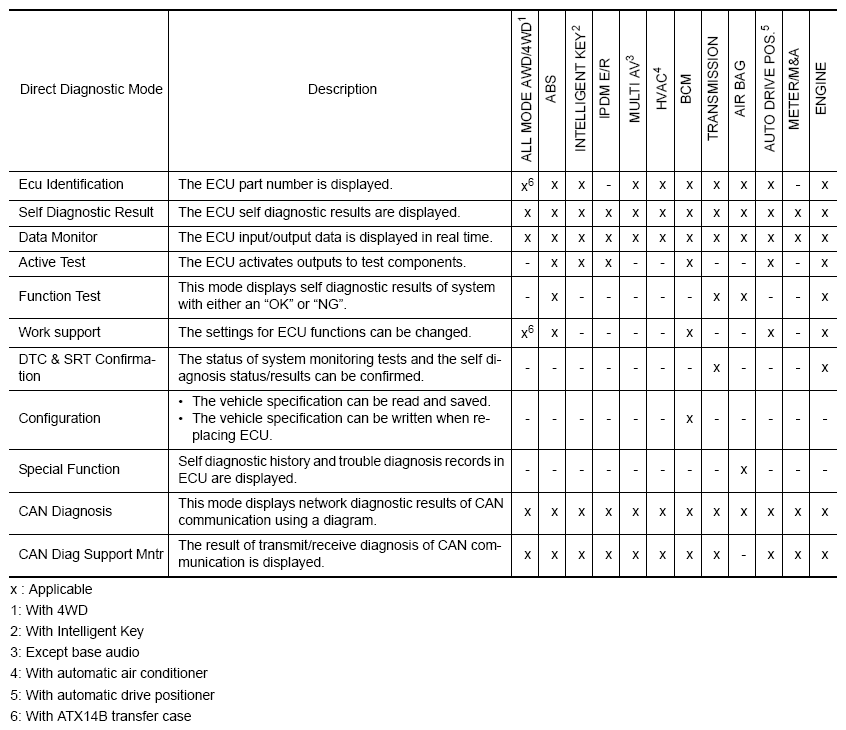

Fig 1: Function And System Application Chart

G07144923

Courtesy of NISSAN MOTOR CO., U.S.A.
