Removal and Installation: Removal

  1. Using a suitable tool, release the metal clip and pawls, then lift the main power window and door lock/unlock switch and finisher (2) upward as an assembly.

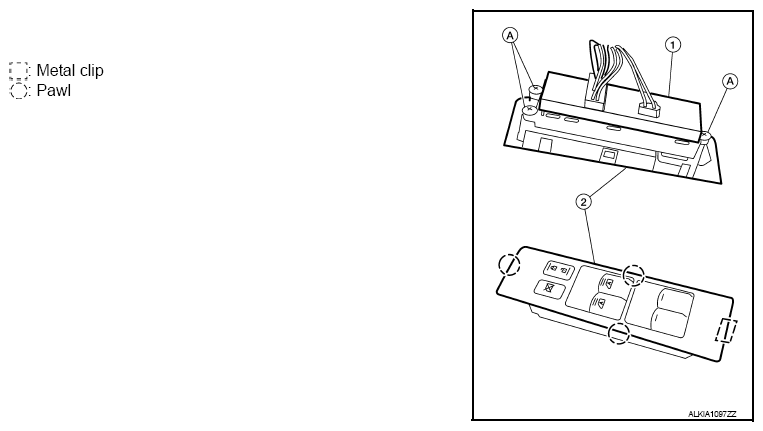

    Fig 1: Identifying Clip, Pawls, Finisher, Main Power Window And Door Lock/Unlock Switch
    G07149579Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connectors, then remove the assembly from front door finisher.
  3. Remove the three screws (A) and separate the main power window and door lock/unlock switch (1) from the switch finisher (2).
