Removal and Installation: Removal

  1. Using a suitable tool, release the metal clip and pawls, then lift the front power window and door lock/unlock switch and finisher upward as an assembly from the door finisher.

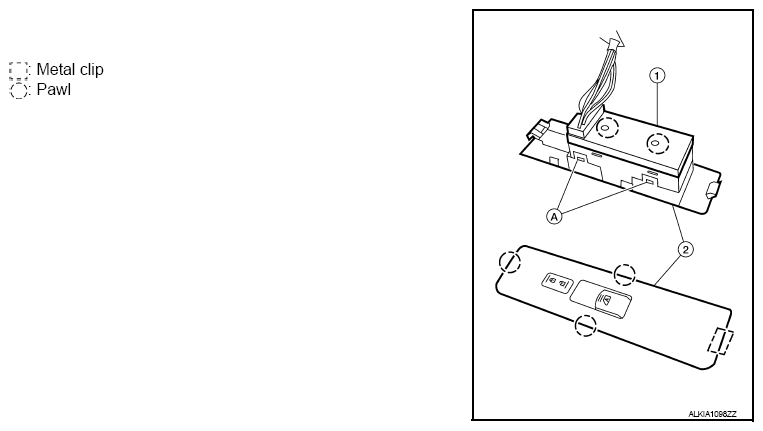

    Fig 1: Identifying Clip, Pawls, Finisher, Front Power Window And Door Lock/Unlock Switch
    G07149580Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connector, then remove the assembly from front door finisher.
  3. Release the four tabs (A), two on each side, then separate the front power window and door lock/unlock switch (1) from the switch finisher (2).
