Engine Control System - Introduction (VQ40DE)
>>
System Description
>>
Variable Induction Air System
>>

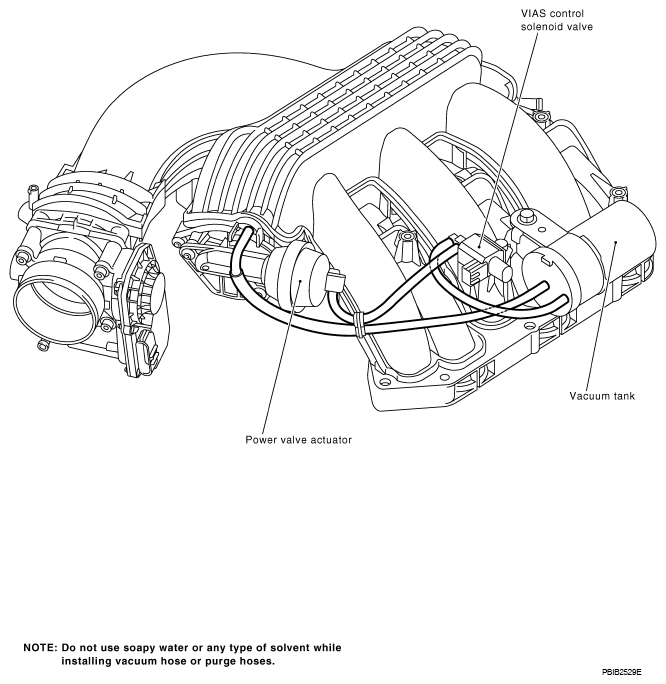

Vacuum Hose Drawing
Vacuum Hose Drawing
Fig 1: Vacuum Hose Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
SYSTEM DIAGRAM
" for Vacuum Control System.
