Exploded View: Disassembly

Type: M000TA0072

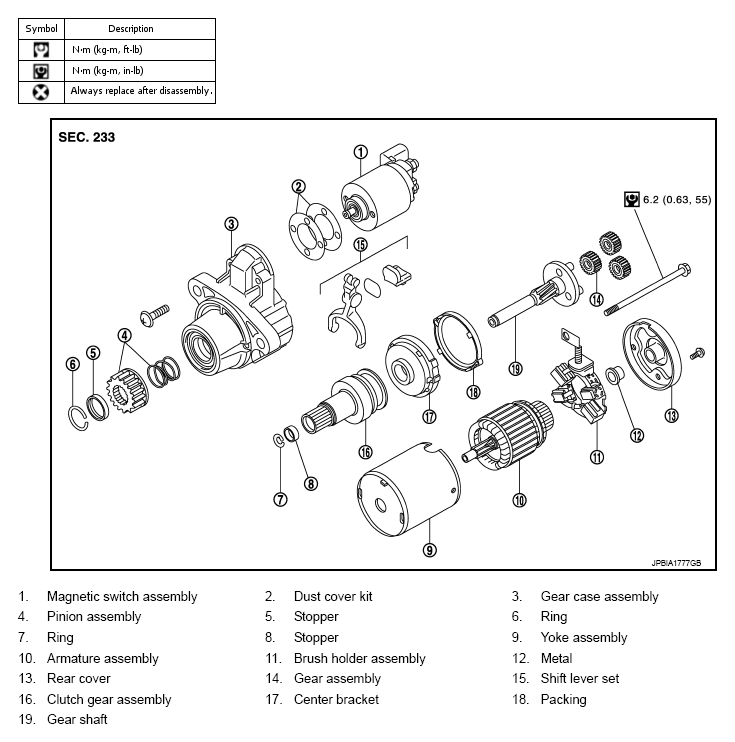

Fig 1: Dissembled View Of Starter Motor With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
