Nissan-Datsun
>>
2011
>>
Murano SL, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System (Except CROSSCABRIOLET)
>>
Removal And Installation
>>
Front Door Glass
>>
Exploded View
Exploded View

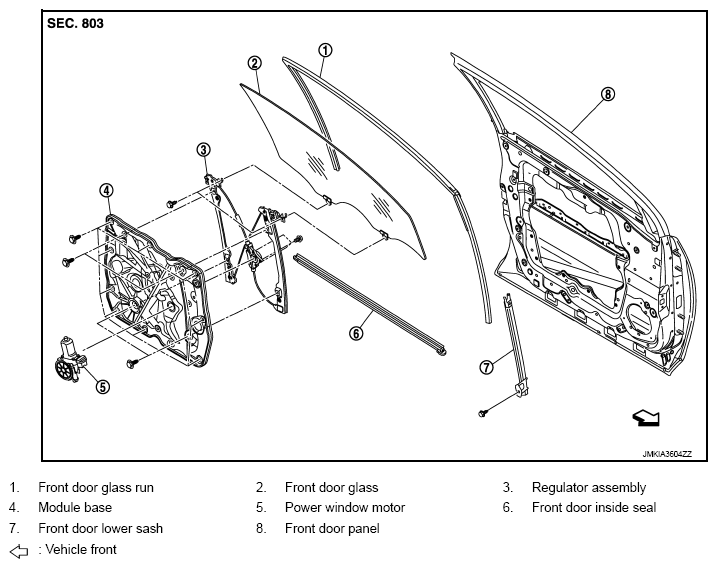

Fig 1: Exploded View Of Front Door Glass
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
