Exploded View

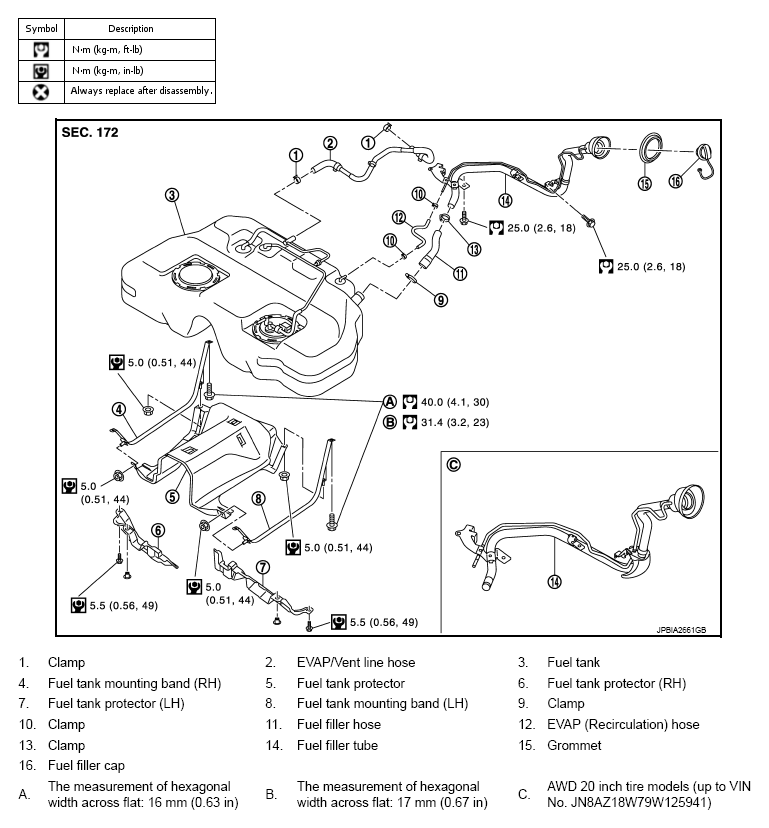

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for to symbols in the figure.

• In regard to the notation of torque in the figure, (A) shows an ISO standard, (B) shows a conventional standard.
