Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
Exploded View

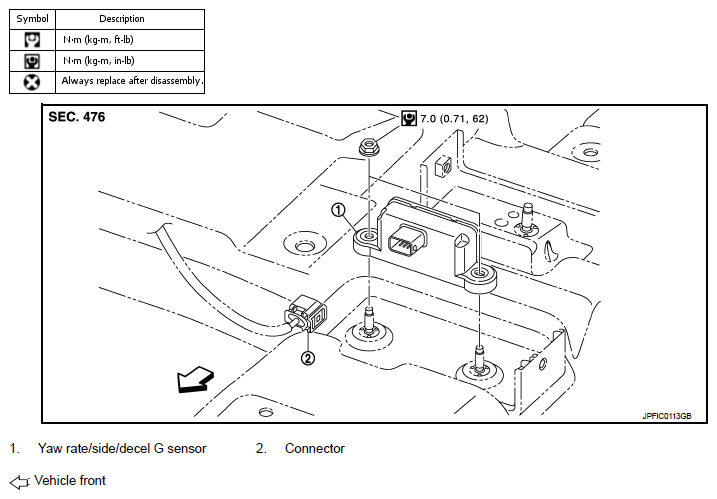

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbol in the figure.
