MULTI AV SYSTEM : System Diagram

WARNING: This page is about a different variant/trim than selected.

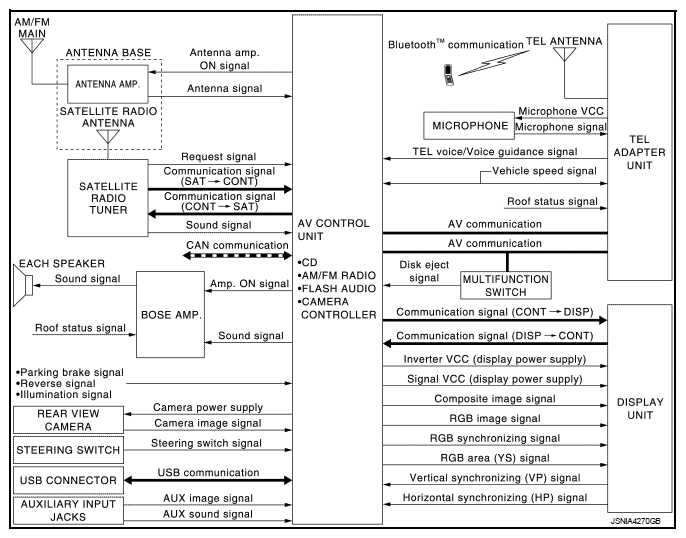

Fig 1: Multi AV - System Diagram
G07133087Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
  • An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
    Fig 2: Radio And Satellite Radio Antenna Signal Communication Diagram
    G05731530Courtesy of NISSAN MOTOR CO., U.S.A.
