Quick Connector

CAUTION:
  • After connecting fuel tube quick connectors, check quick connectors are secure.

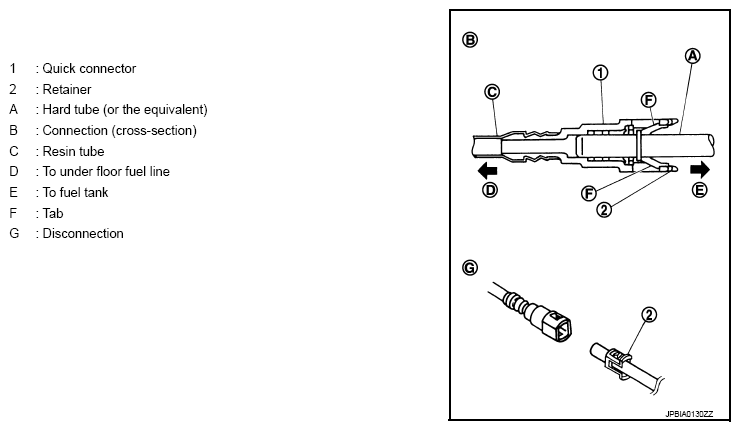

    Fig 1: Connection And Disconnection Of Quick Connector And Hard Tube
    G07125628Courtesy of NISSAN MOTOR CO., U.S.A.
  • Ensure that connector and resin tube never contact any adjacent parts.
