2WD : Exploded View

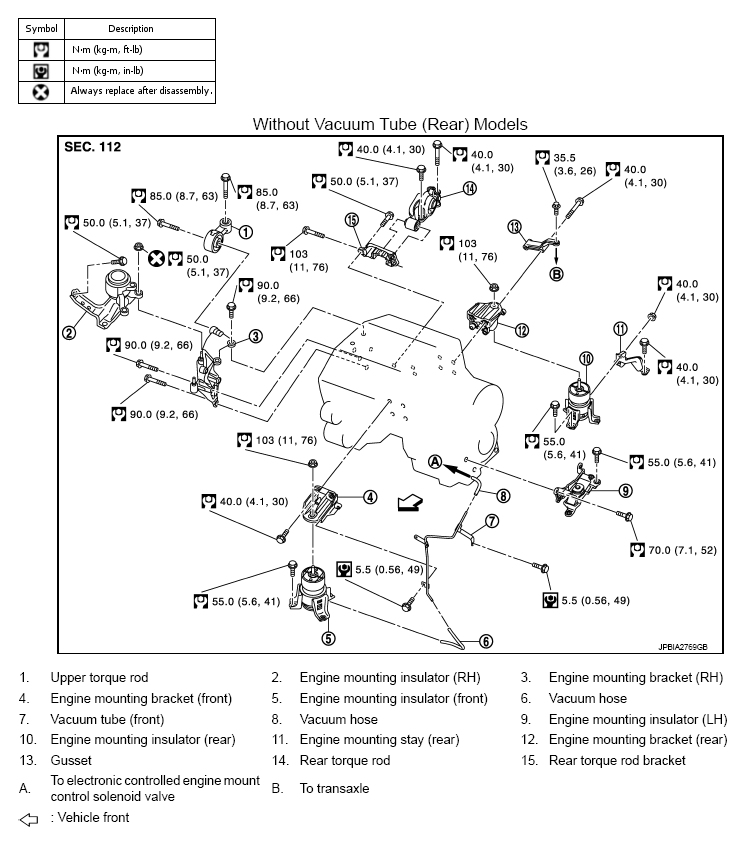

Fig 1: Exploded View Of Engine Assembly - Without Vacuum Tube (Rear) Models (2WD) With Torque Specifications
G07124925Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

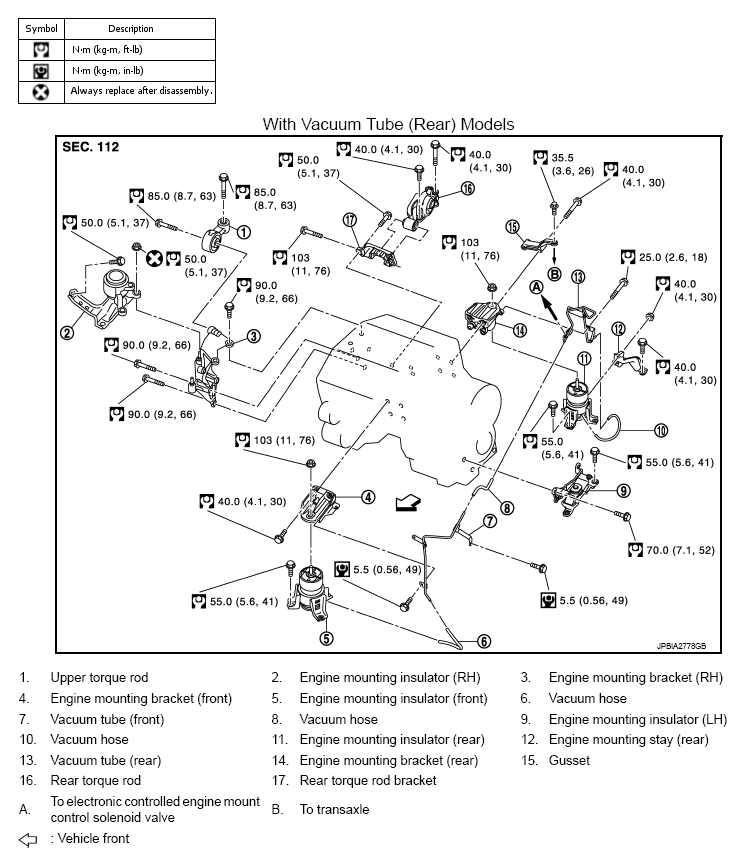

Fig 2: Exploded View Of Engine Assembly - With Vacuum Tube (Rear) Models With Torque Specifications
G07124926Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
