Exploded View

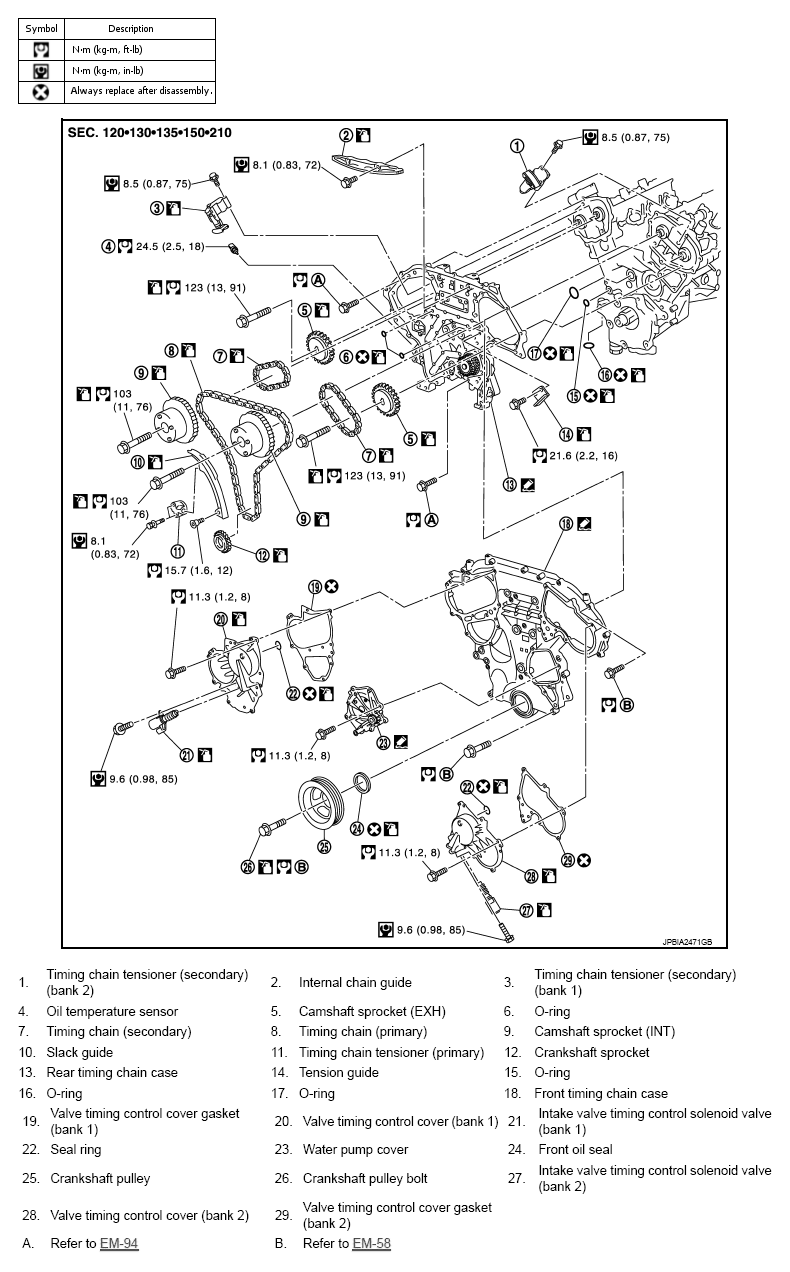

Fig 1: Exploded View Of Rear Timing Chain Case With Torque Specifications
G07124963Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
