Exploded View: Removal

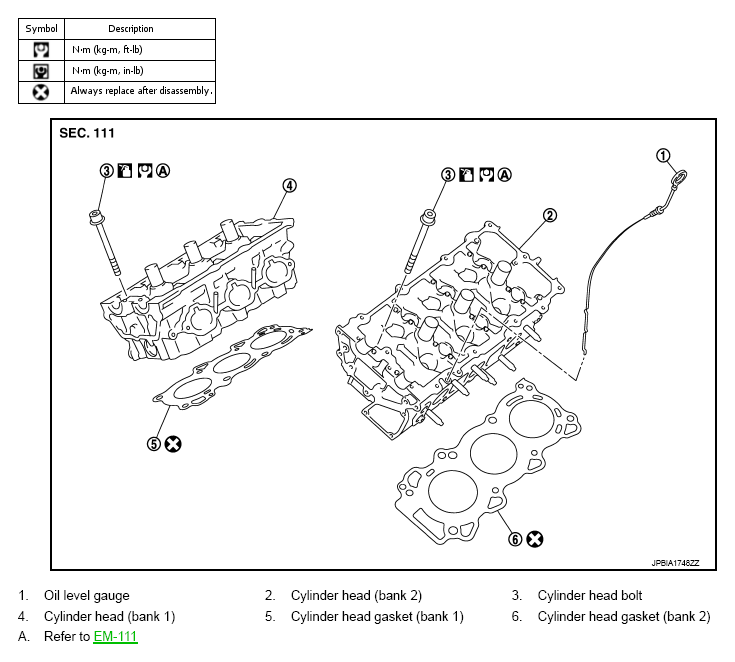

Fig 1: Cylinder Head Replacement Components With Torque Specifications

G07125006

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
