Exploded View: Disassembly

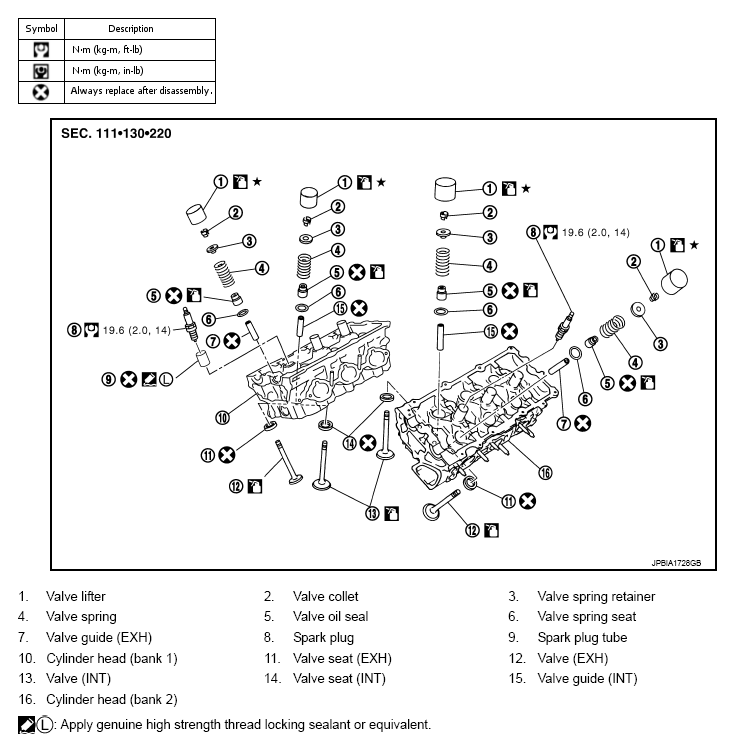

Fig 1: Exploded View Of Cylinder Head With Torque Specifications

G07125007

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
