Disassembly and Assembly: Assembly

Note the following, and assemble in the reverse order of disassembly.

• Install oil pump inner rotor with the groove (C) faced to oil pump cover side (B).

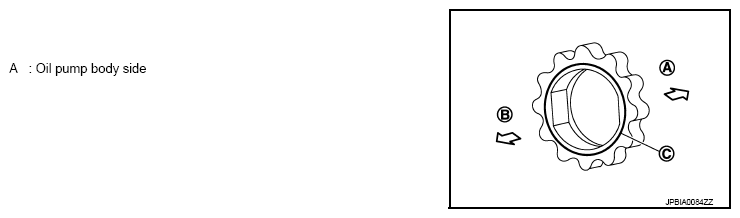

  Fig 1: Identifying Oil Pump Cover Side, Oil Pump Body Side And Rotor Groove

  Courtesy of NISSAN MOTOR CO., U.S.A.
