System Diagram
System Diagram

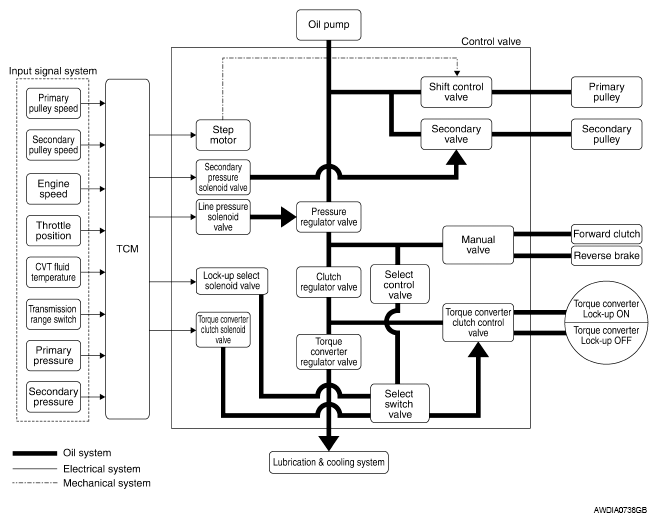

Fig 1: Hydraulic Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
