Maxima S
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
System Description
>>
CVT System
>>
System Diagram
System Diagram

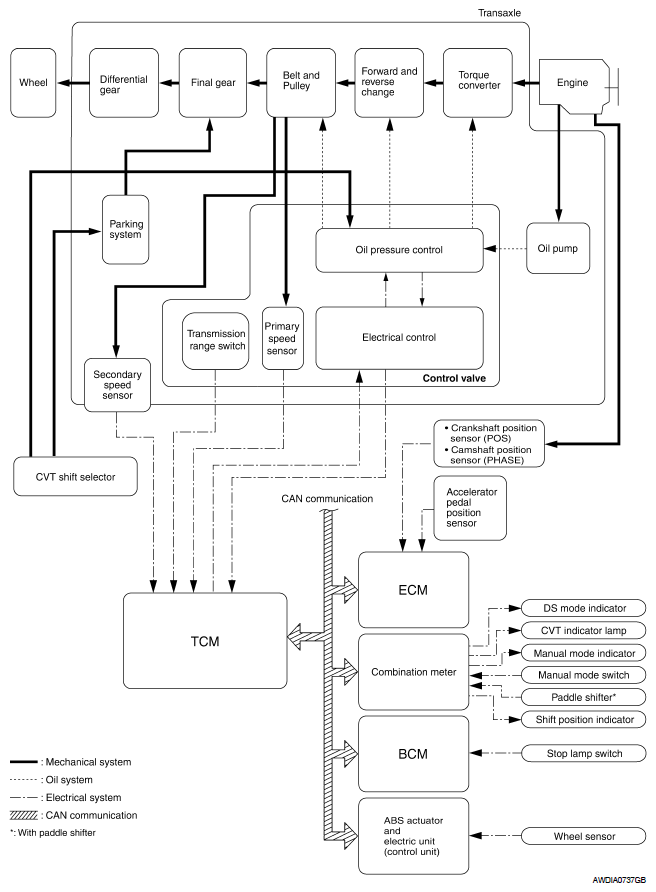

Fig 1: CVT System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
