Home
>>
Nissan-Datsun
>>
2011
>>
Maxima S
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Removal And Installation
>>
Paddle Shifter
>>
Exploded View
Exploded View

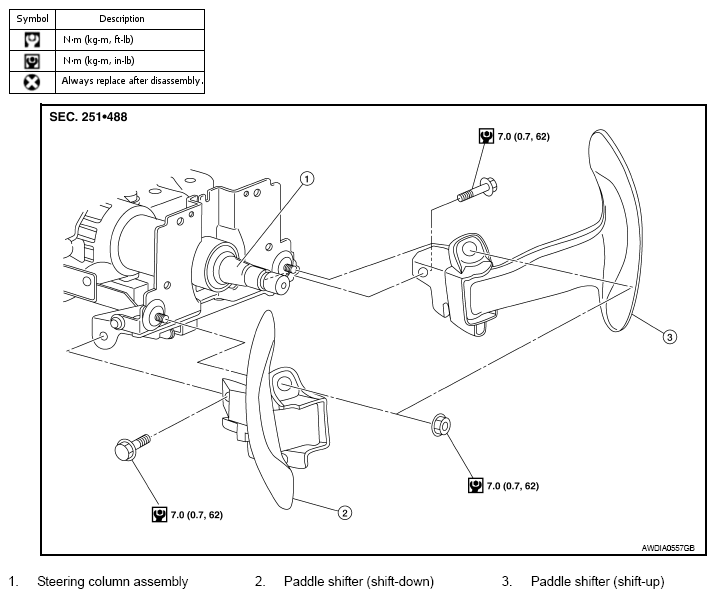

Fig 1: Paddle Shifter Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
