Nissan-Datsun
>>
2011
>>
Maxima S
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Telescopic Motor
>>
Exploded View
Exploded View

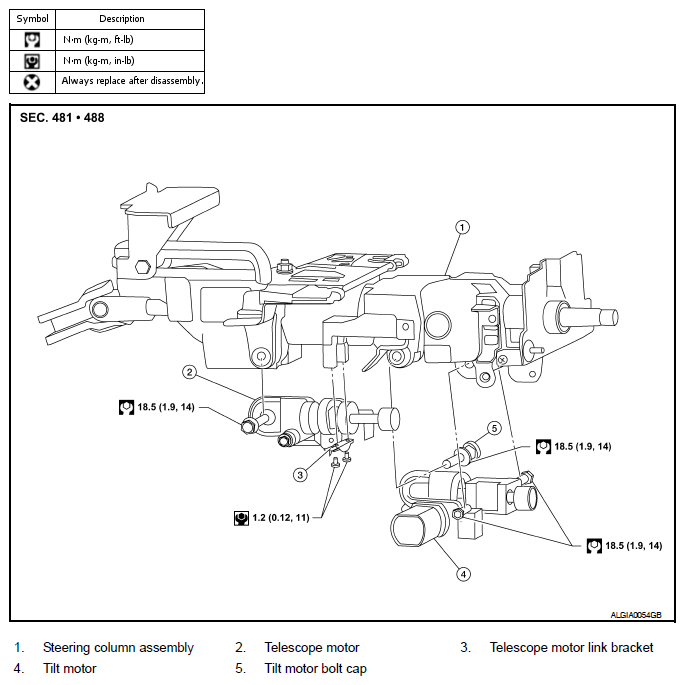

Fig 1: Telescopic Motor Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
