Exploded View

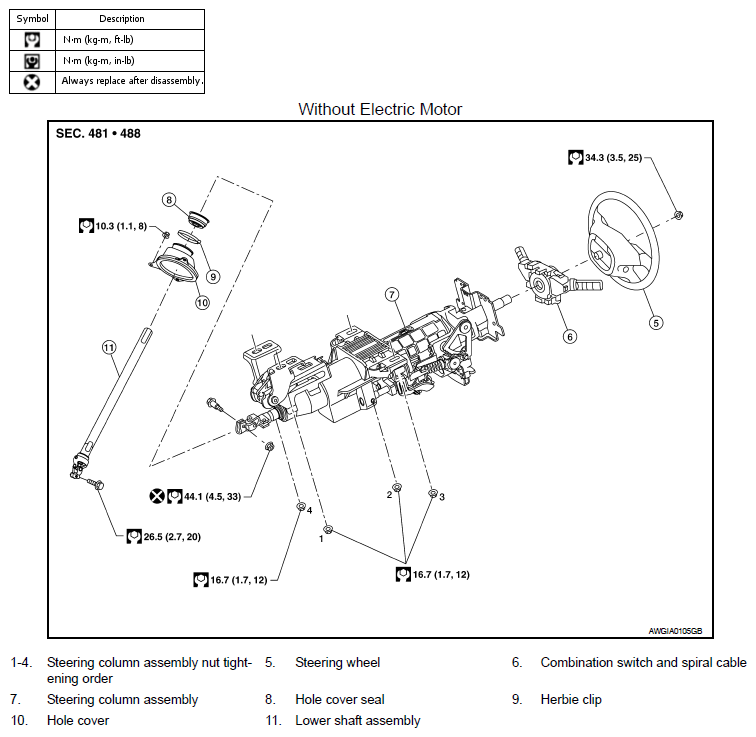

Fig 1: Exploded View Of Steering Column (Without Electric Motor) With Torque Specifications
G06990962Courtesy of NISSAN MOTOR CO., U.S.A.

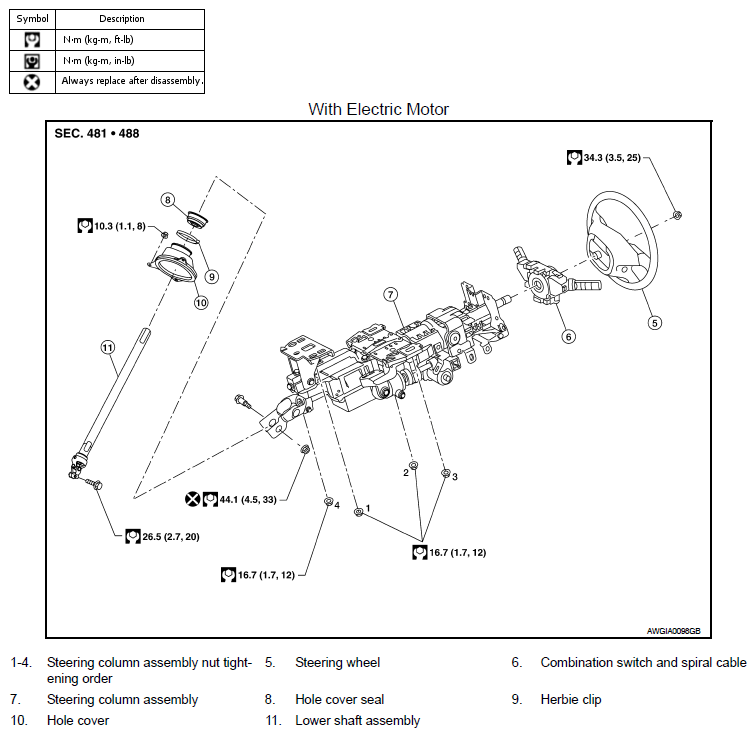

Fig 2: Exploded View Of Steering Column (With Electric Motor) With Torque Specifications
G06990963Courtesy of NISSAN MOTOR CO., U.S.A.
