Disassembly and Assembly: Notes

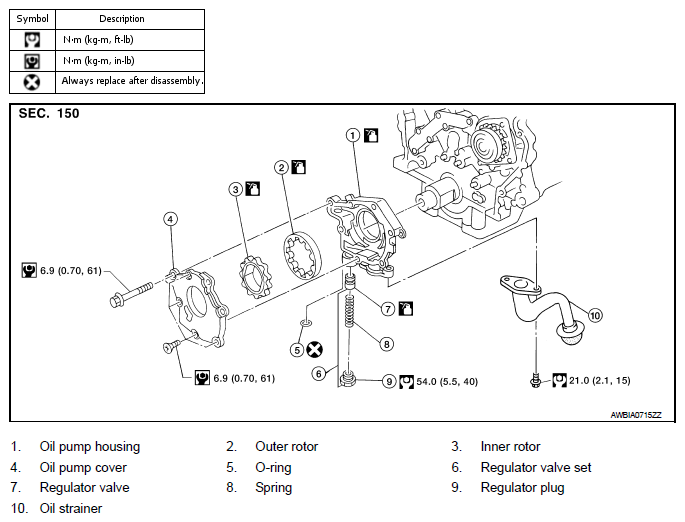

Fig 1: Oil Pump Replacement Components With Torque Specifications
G06989722Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Before assembly, apply new engine oil to the parts as shown in the figure.
