Abs Actuator And Electric Unit (Control Unit)
>>
Exploded View
Exploded View

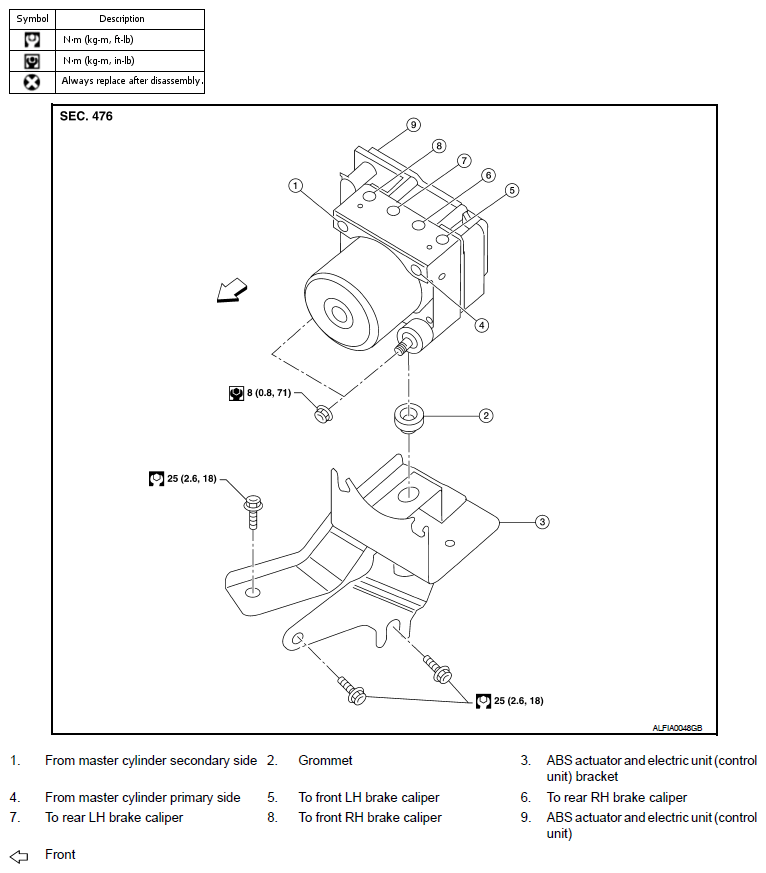

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
