Home >> Nissan-Datsun >> 2011 >> Leaf SV >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> System Description >> System >> Schematic

System Description: System: Schematic

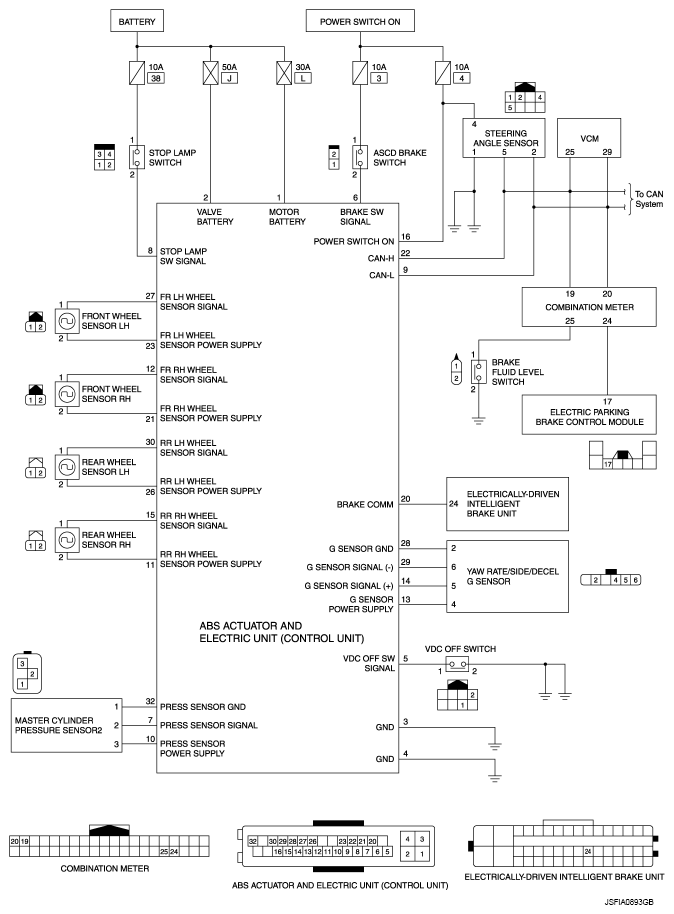

Fig 1: ABS Actuator And Electric Unit (Control Unit) Schematic

G07086913

Courtesy of NISSAN MOTOR CO., U.S.A.
