Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
Exploded View

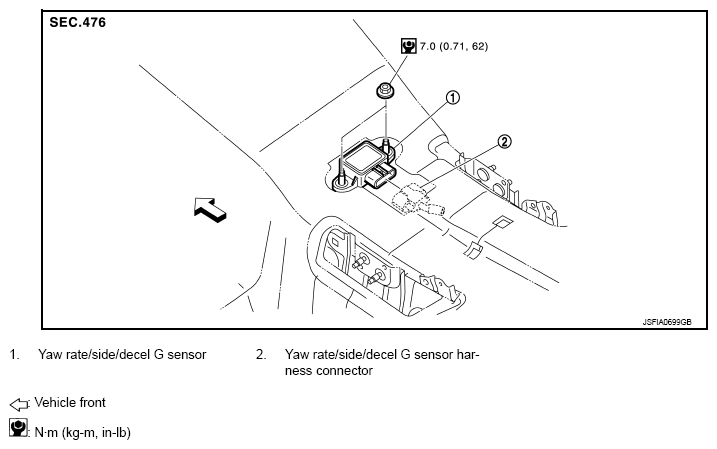

Fig 1: Yaw Rate/Side/Decel G Sensor Bolt With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
