Abs Actuator And Electric Unit (Control Unit)
>>
Exploded View
Exploded View

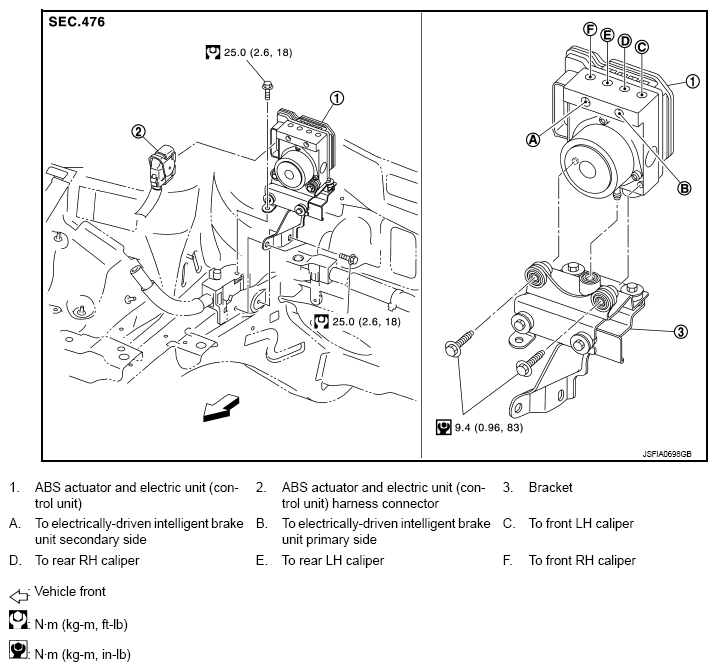

Fig 1: ABS Actuator & Electric Unit (Control Unit) Bolt With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
