Home
>>
Nissan-Datsun
>>
2011
>>
Juke SV, 4WD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Removal And Installation
>>
Steering Gear And Linkage
>>
Exploded View
>>
Disassembly
Exploded View: Disassembly

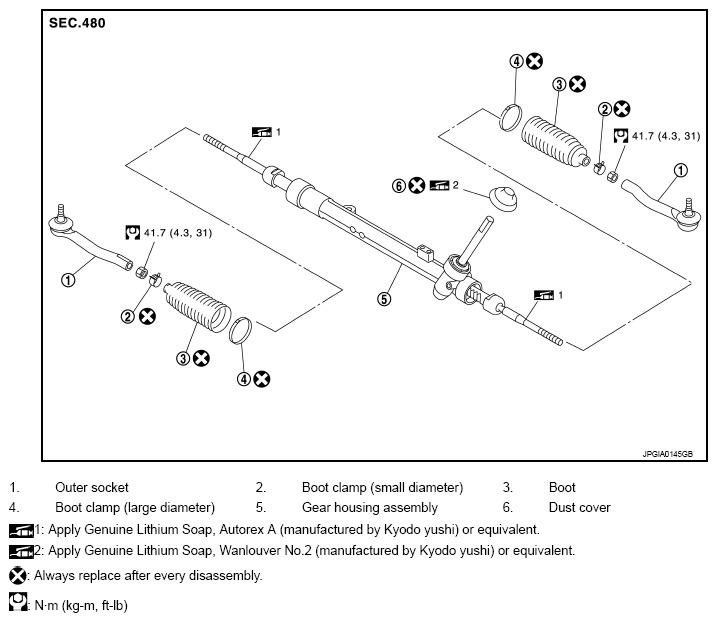

Fig 1: Disassembled View Of Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
