Transfer: TY21B
>>
Unit Removal And Installation
>>
Transfer Assembly
>>
Exploded View
Exploded View

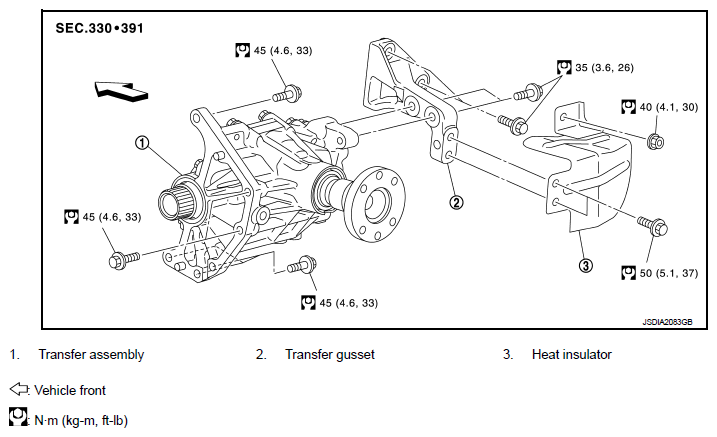

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
