Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• When installing AWD control module, install it following procedure.

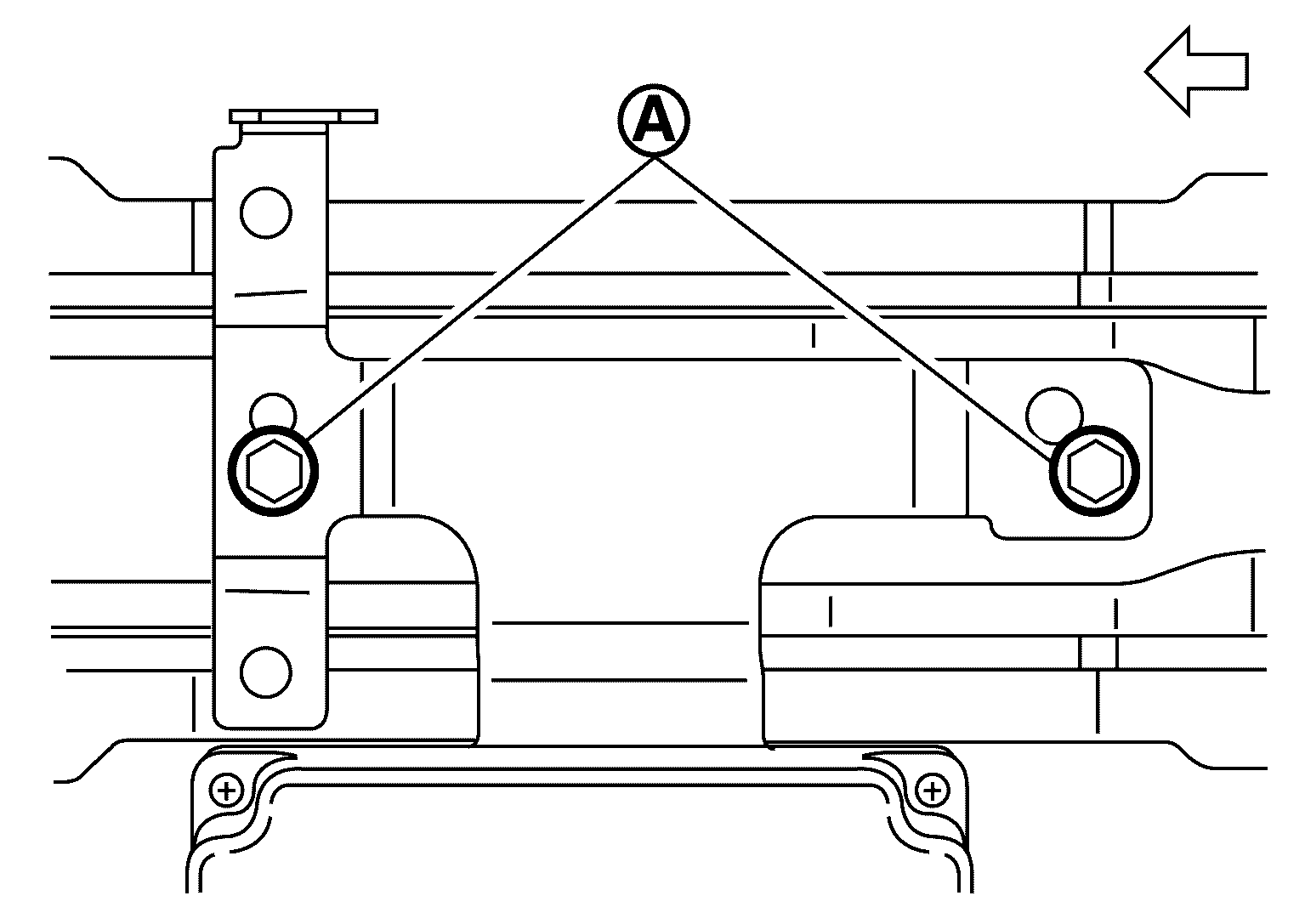

1. Align the securing holes (A) of bracket as shown in the figure and temporarily tighten mounting bolts.
   Fig 1: Aligning Securing Holes Of Bracket

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. When replace AWD control module, hold AWD control module and remove protector paper on the adhesion area of bracket to bond to the front floor (LH).
3. Tighten mounting bolts to the specified torque.
   • When replacing AWD control module, perform writing unit parameter. Refer to , "WORK PROCEDURE ".
