Removal And Installation
>>
Control Valve
>>
Exploded View
>>
Component Parts Location
Component Parts Location

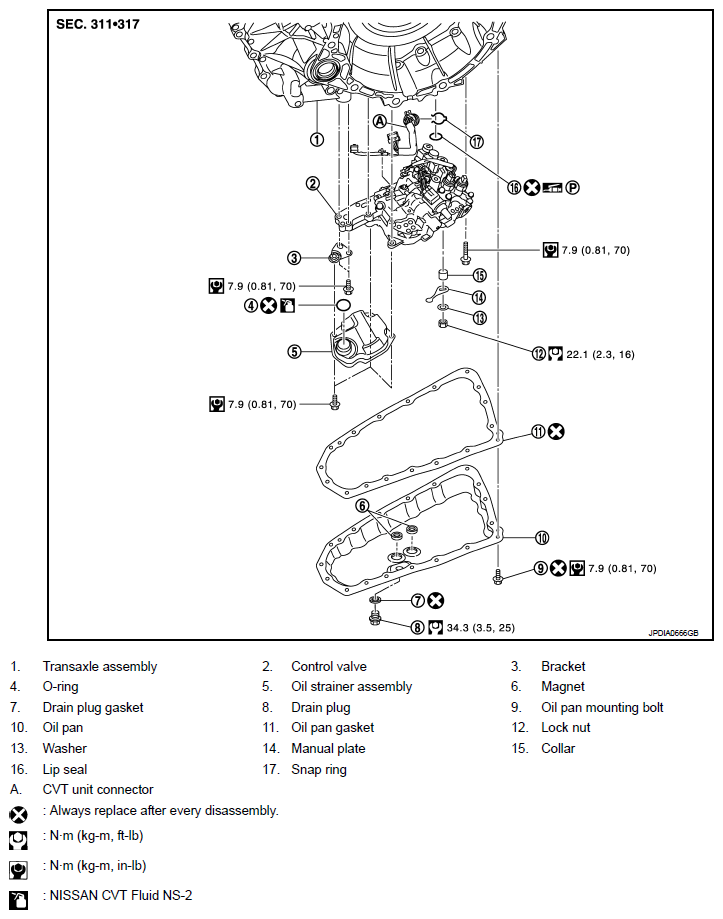

Fig 1: Exploded View Of Control Valve With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
