LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2011
>>
Juke SL, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
CVT
>>
Removal And Installation
>>
Control Cable
>>
Exploded View
>>
AWD Models
AWD Models

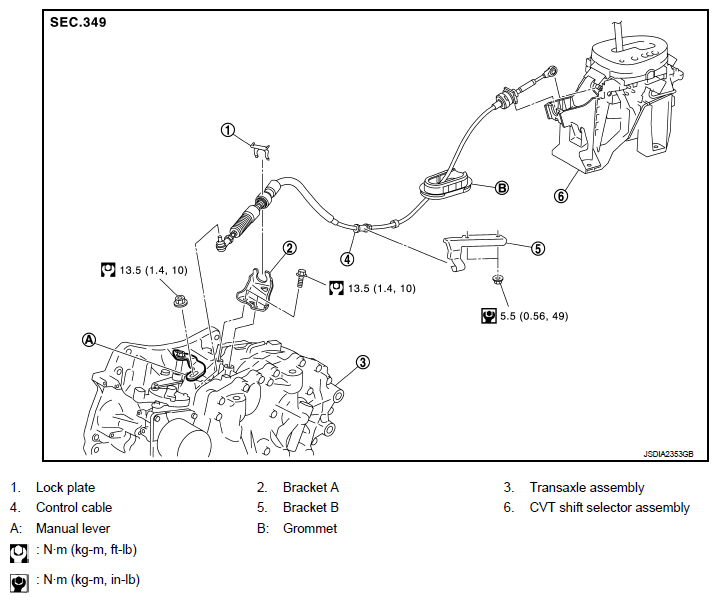

Fig 1: Exploded View Of Control Cable (AWD Models) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
