Control Cable
>>
Exploded View
>>
2WD Models
2WD Models

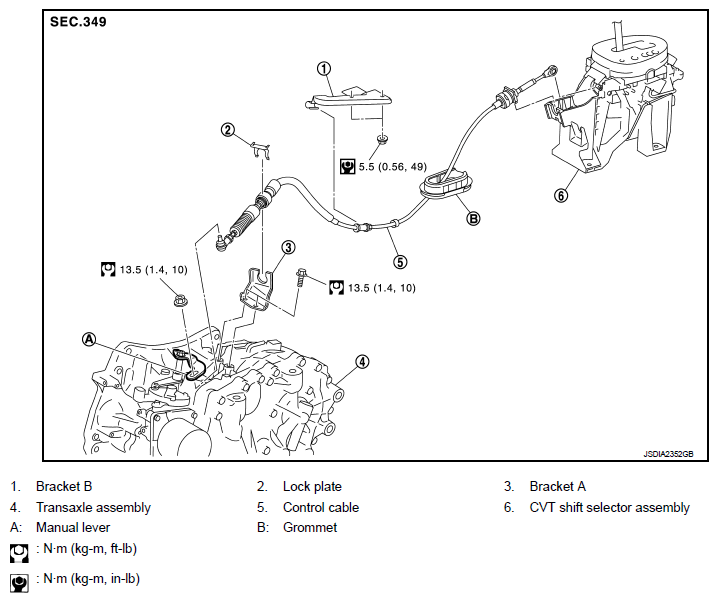

Fig 1: Exploded View Of Control Cable (2WD Models) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
