Nissan-Datsun
>>
2011
>>
Juke SL, 4WD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Removal And Installation
>>
Steering Column
>>
Exploded View
Exploded View

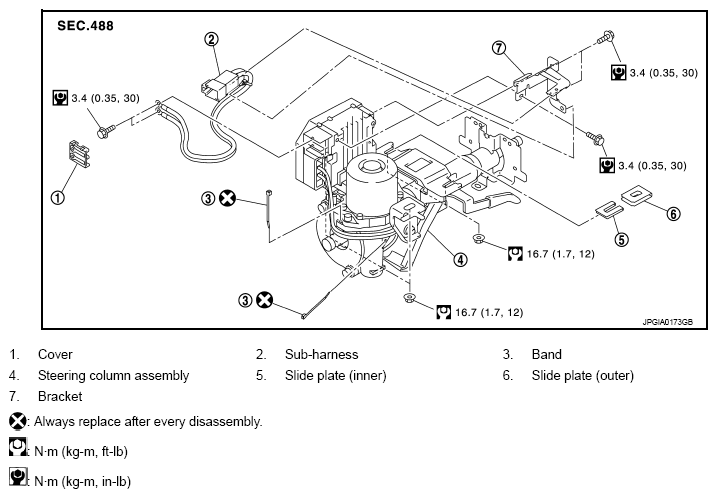

Fig 1: Exploded View Of Steering Column With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
