Exploded View: Disassembly

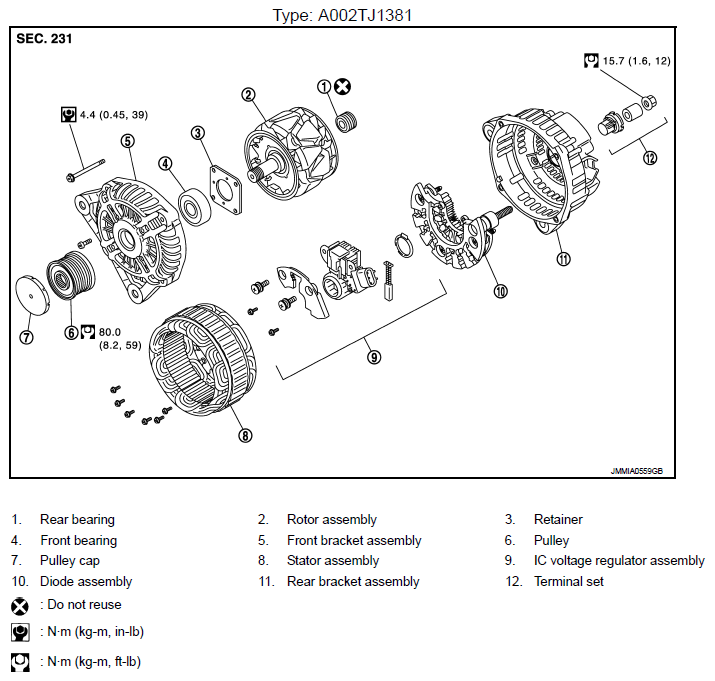

Fig 1: Exploded View Of Alternator With Torque Specifications - Type A002TJ1381

G06934998

Courtesy of NISSAN MOTOR CO., U.S.A.
