Disassembly and Assembly: Installation

Note the following, and install in the reverse order of removal.

• Follow the procedure below and place the selector knob onto the CVT shift selector.

1. Install the lock pin (2) onto the selector lever knob (3).
2. Install the knob cover (1) onto the selector lever knob.
3. Press the selector lever knob onto the selector lever until it clicks.
   CAUTION:

   • When pressing the selector lever knob onto the selector lever, never press the selector lever knob button.
   • Never strike the selector lever knob to press it into place.

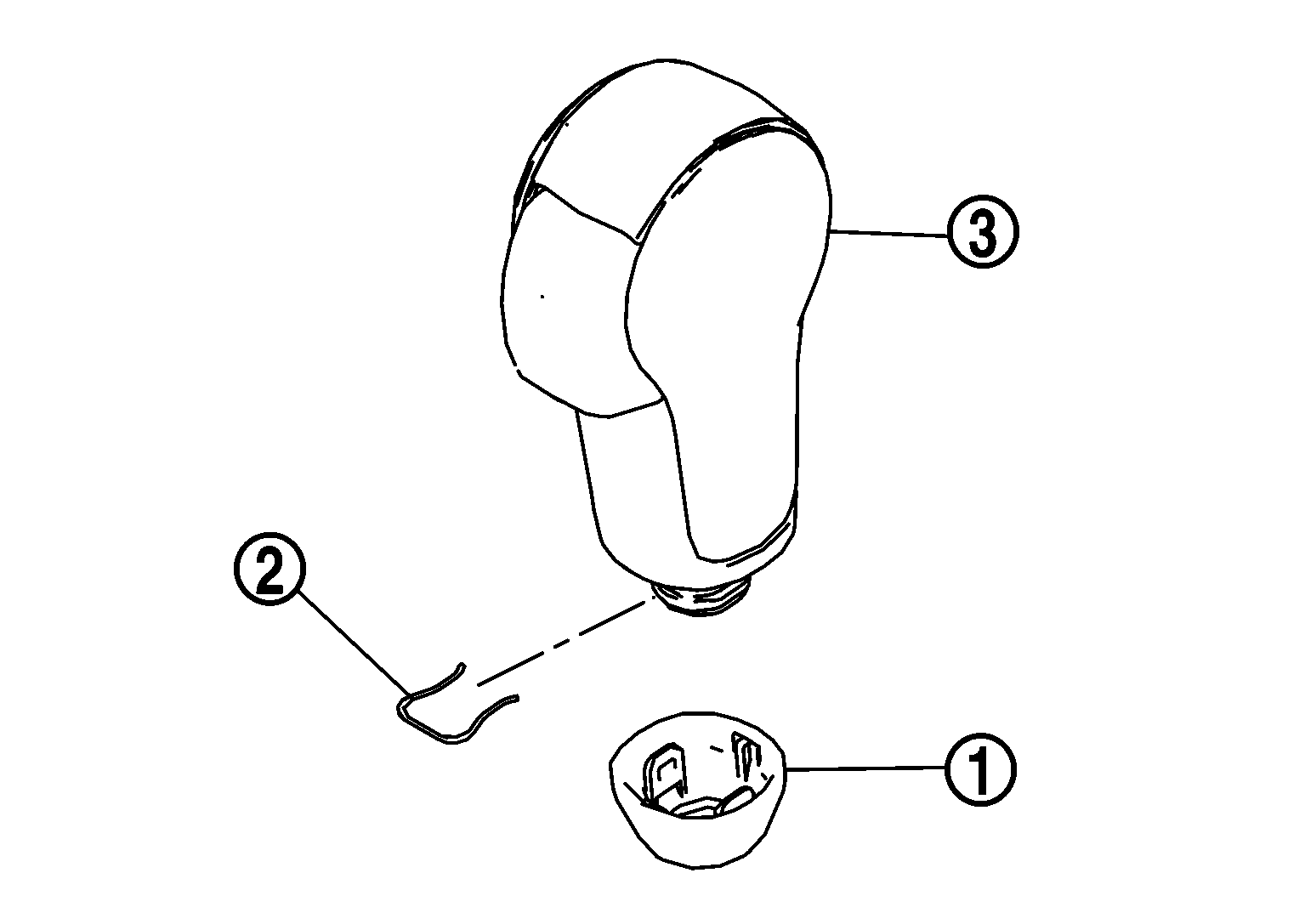

     Fig 1: Identifying Lock Pin, Selector Lever Knob With Cover

     Courtesy of NISSAN MOTOR CO., U.S.A.
